Fuel Tank

310-01D Fuel Tank and Lines - 5.2L

2016 Mustang5.2LReference 3,219 / 6,619HTML edition
← Chapter contentsProcedure contents

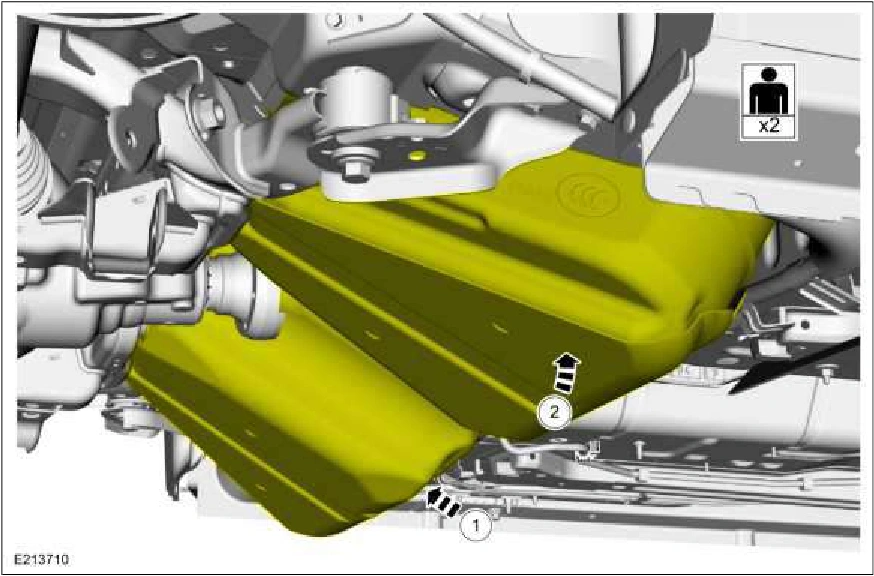

Fuel Tank — original illustration 1, reference 3219Original colors & callouts · Select to enlarge

2. Clean the bolts and weld nuts lightly with a wire brush. Apply the thread locking sealant to the bolt threads. Material : Threadlock and Sealer / TA-25-B

NOTE: To insure that the bolts are threaded in straight, start the bolts by hand and turn several threads before tightening.

Position the fuel tank straps and install the bolts. Torque : 38 lb.ft (52 Nm)

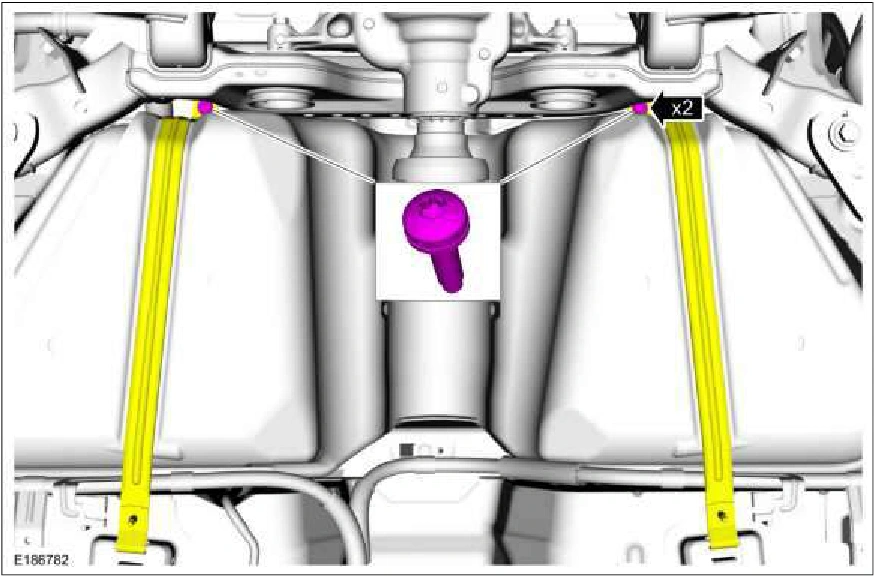

Fuel Tank — original illustration 2, reference 3219Original colors & callouts · Select to enlarge

3. Reposition the LH emergency brake cable bracket and install the nut. Torque : 18 lb.ft (25 Nm)

Source reference 3219
