Fuel Tank — 2016 workshop reference 3221

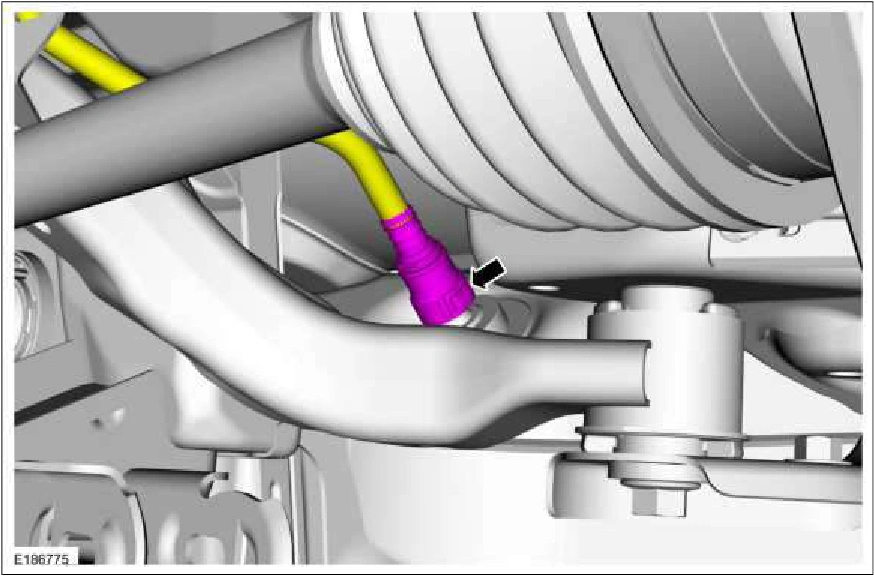

Fuel Tank — original illustration 1, reference 3221Original colors & callouts · Select to enlarge

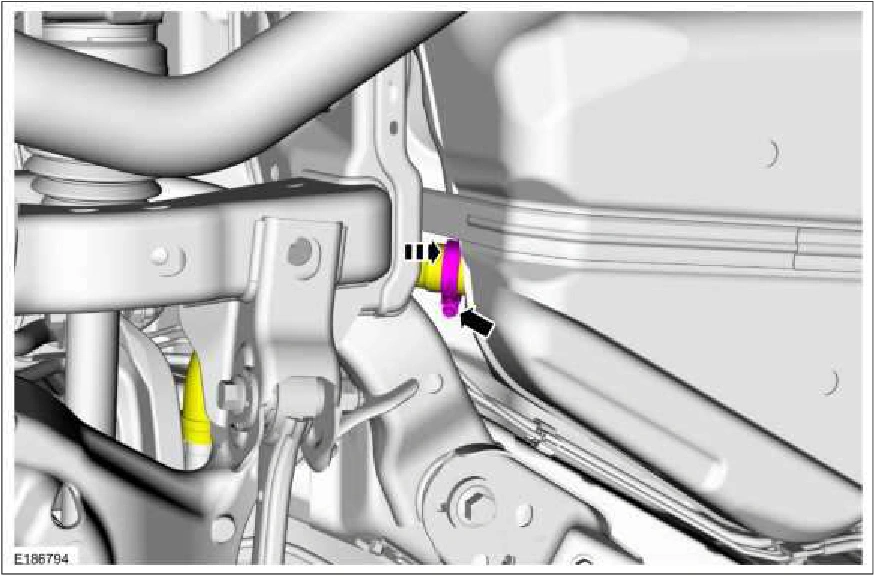

6. Connect the hose to the fuel tank and tighten the clamp .

Fuel Tank — original illustration 2, reference 3221Original colors & callouts · Select to enlarge

7. NOTICE: The help of a assistant will be needed. Do not over articulate the driveshaft or damage

may occur.

Align the index marks on the driveshaft to the rear axle pinion flange.
