Fuel Tank — 2016 workshop reference 3224

Fuel Tank — original illustration 1, reference 3224Original colors & callouts · Select to enlarge

13. Connect electrical connector and fuel tube quick release coupling. Refer to: Quick Release Coupling (310-00D Fuel System - General Information - 5.2L 32V Ti-VCT, General Procedures).

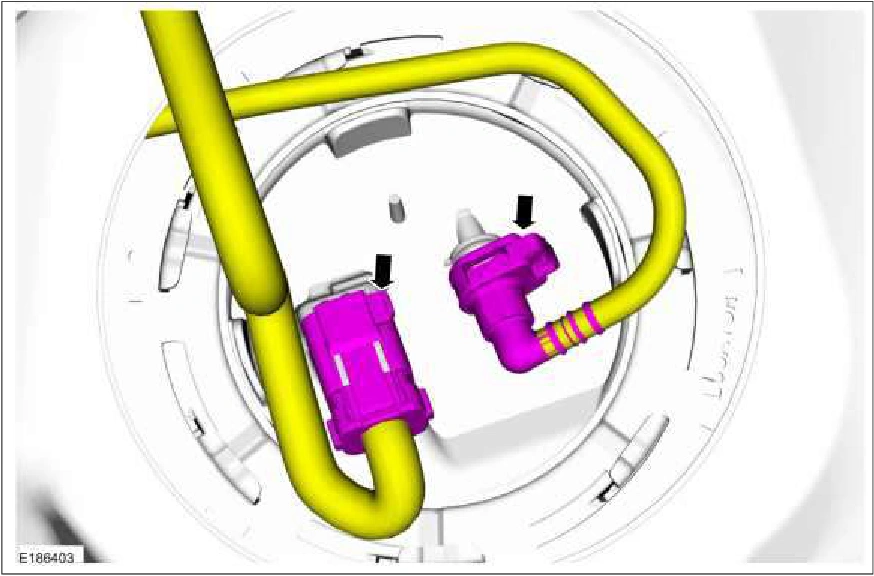

Fuel Tank — original illustration 2, reference 3224Original colors & callouts · Select to enlarge

14. Install the access cover.
