Fuel Tank — 2016 workshop reference 3226

any dirt or foreign material.

Connect the electrical connector.

Fuel Tank — original illustration 1, reference 3226Original colors & callouts · Select to enlarge

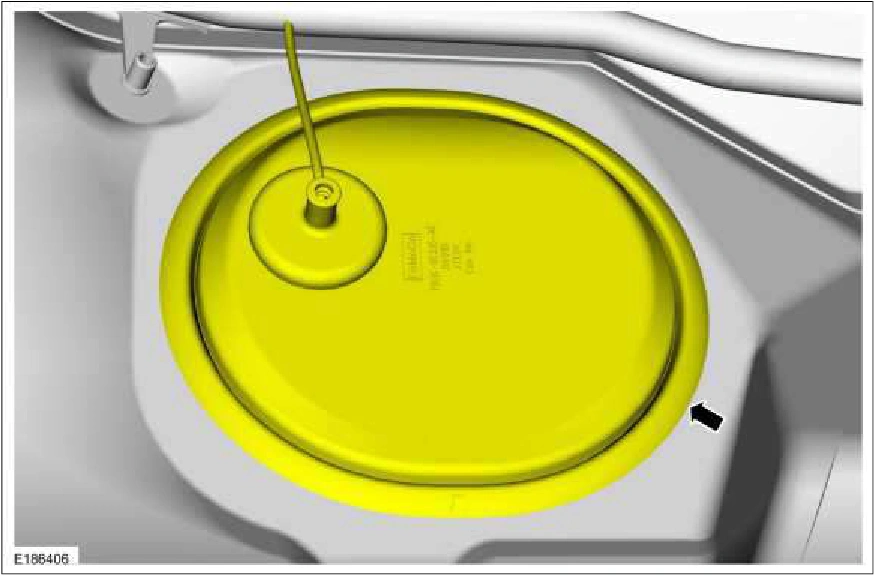

18. Install the access cover.

Fuel Tank — original illustration 2, reference 3226Original colors & callouts · Select to enlarge

19. Install the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

20. Connect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
