Fuel Tank Filler Pipe — 2016 workshop reference 3229

General Procedures).

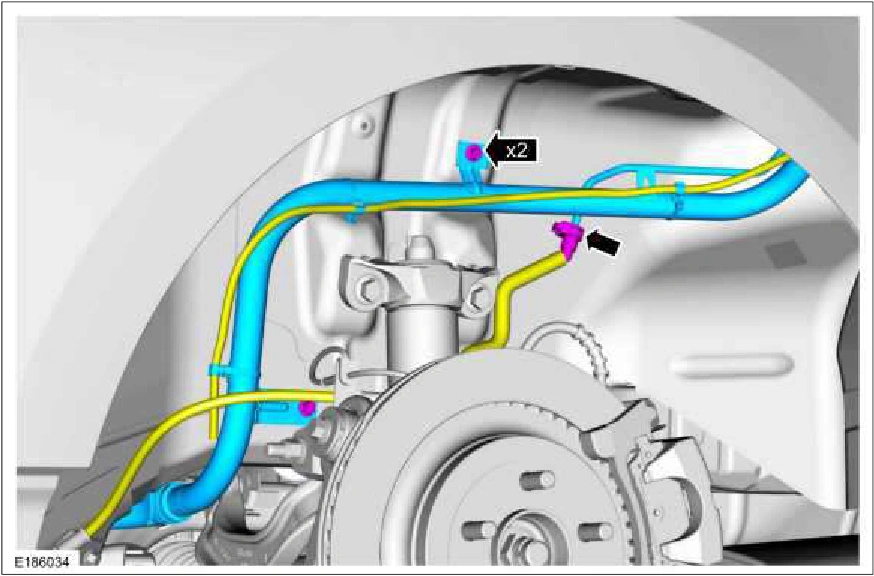

2. Remove retainers and the Fuel Tank Filler Pipe. Torque : 18 lb.ft (25 Nm)

Fuel Tank Filler Pipe — original illustration 1, reference 3229Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3229
