2016 workshop · Fuel System

Fuel Tank

310-01D Fuel Tank and Lines - 5.2L

2016 Mustang5.2LReference 3,222 / 6,619HTML edition
← Chapter contentsProcedure contents

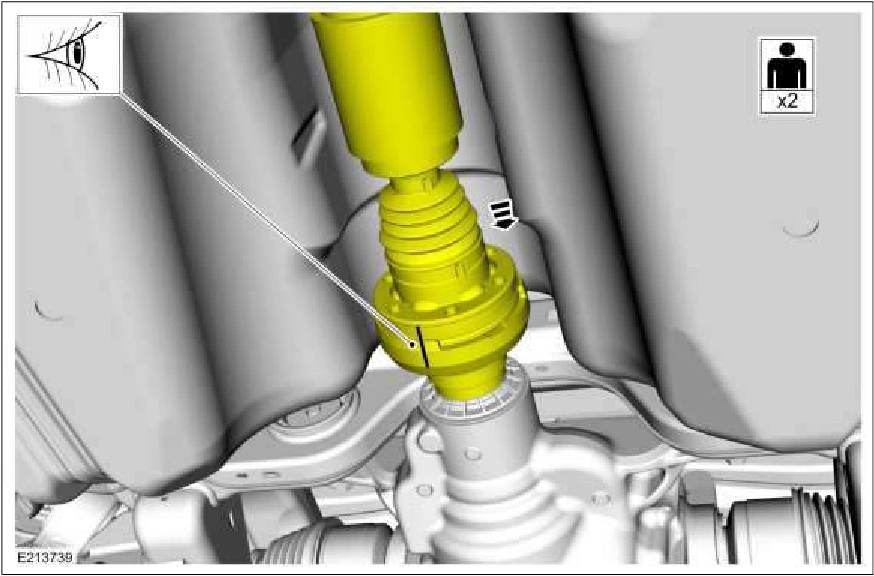

Fuel Tank — original illustration 1, reference 3222Original colors & callouts · Select to enlarge

8. Clean the bolts. Apply the thread locking sealant to the bolt threads. Material : Threadlock and Sealer / TA-25-B Install the bolts. Torque : 41 lb.ft (55 Nm)

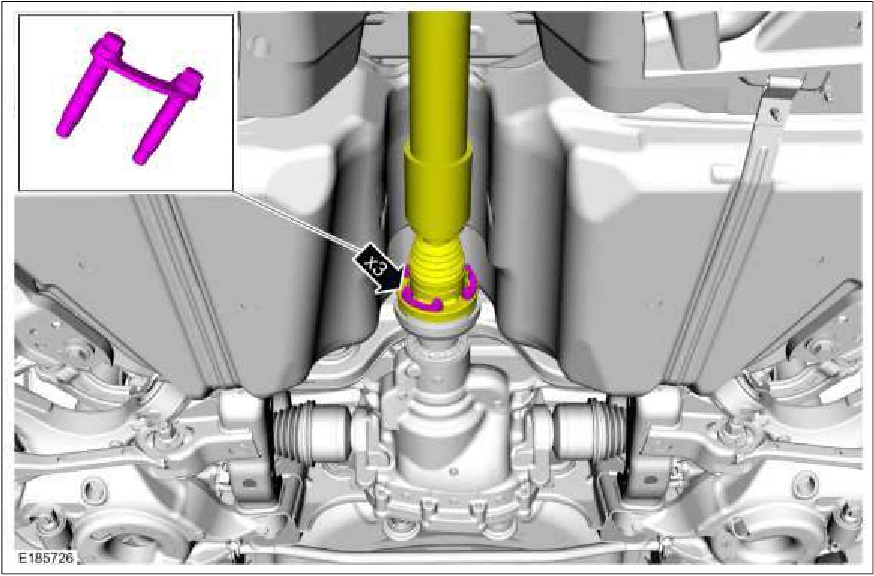

Fuel Tank — original illustration 2, reference 3222Original colors & callouts · Select to enlarge

9. Clean the bolts. Apply thread locking sealant to the bolt threads. Material : Threadlock and Sealer / TA-25-B Install the bolts. Torque : 35 lb.ft (48 Nm)
