Fuel Tank — 2016 workshop reference 3220

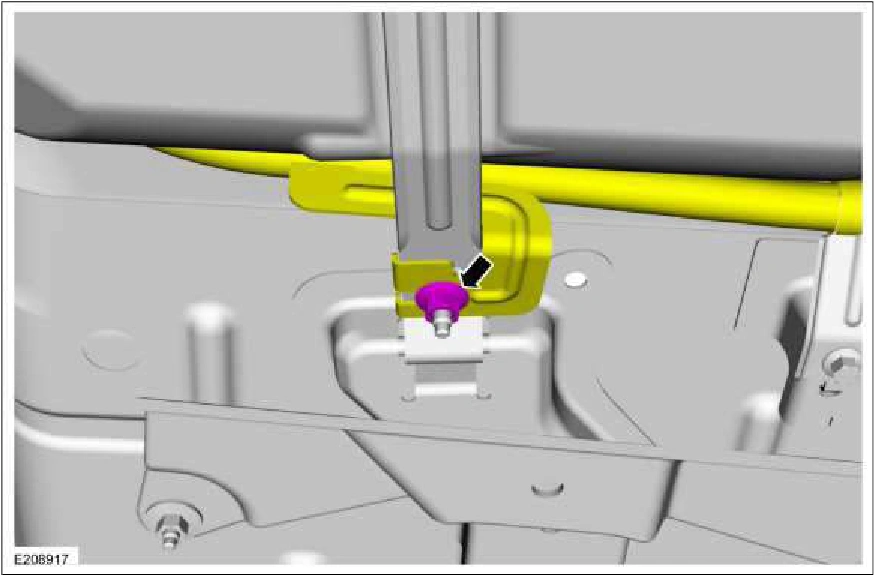

Fuel Tank — original illustration 1, reference 3220Original colors & callouts · Select to enlarge

4. Reposition the RH emergency brake cable bracket and install the nut. Torque : 18 lb.ft (25 Nm)

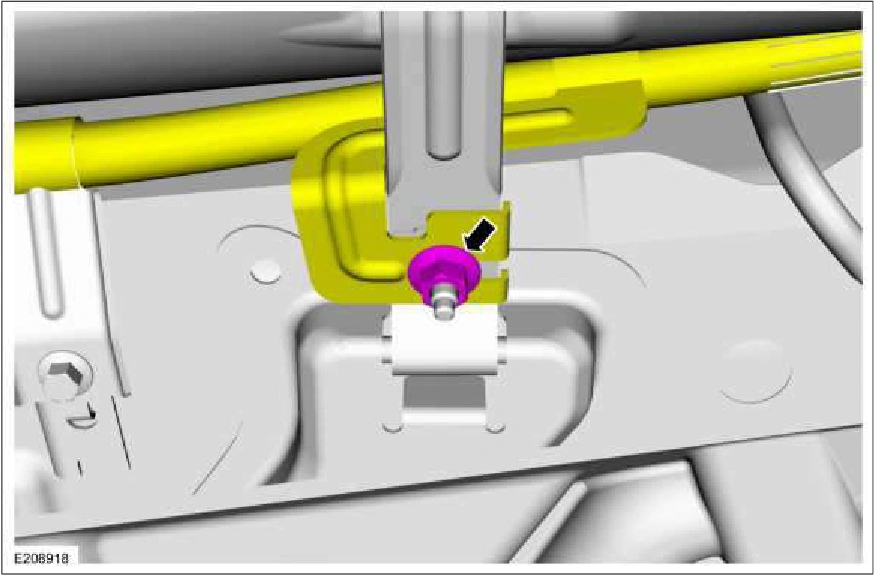

Fuel Tank — original illustration 2, reference 3220Original colors & callouts · Select to enlarge

5. Connect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Refer to: Quick Release Coupling (310-00D Fuel System - General Information - 5.2L 32V Ti-VCT, General Procedures).

Source reference 3220
