Fuel Tank — 2016 workshop reference 3218

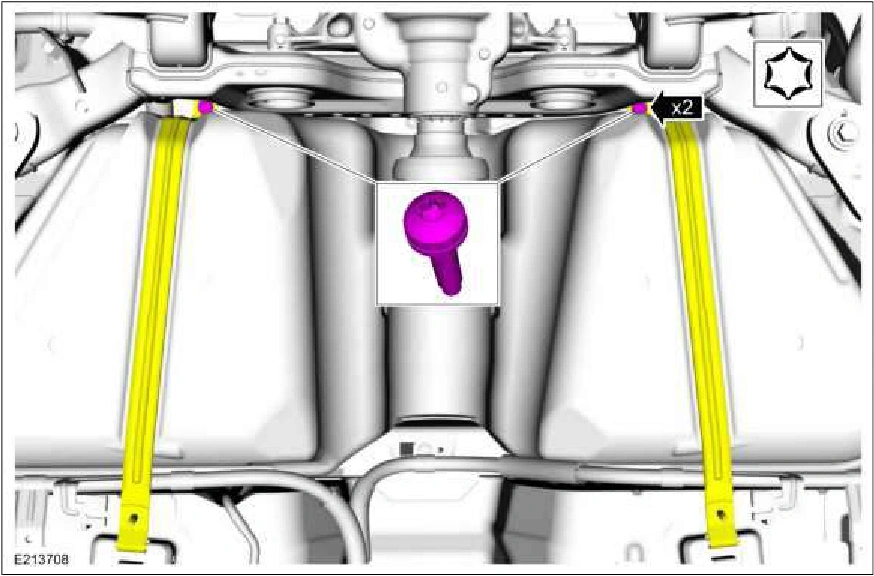

Fuel Tank — original illustration 1, reference 3218Original colors & callouts · Select to enlarge

13. NOTICE: Once the fuel tank is removed from the vehicle, reinstall the driveshaft center support

bearing bolts by hand and support the rear of the driveshaft with a jackstand or mechanics wire.

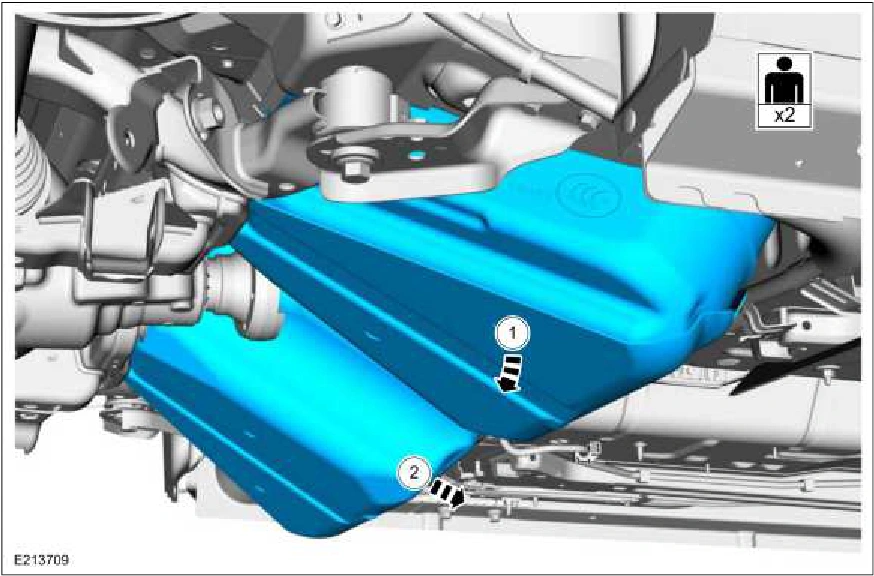

1. Lower the front of the fuel tank.

2. Remove the fuel tank.

Fuel Tank — original illustration 2, reference 3218Original colors & callouts · Select to enlarge

Installation

Step 1

1. Position the fuel tank above the rear differential.

2. Raise the fuel tank into position.

Source reference 3218
