Fuel Tank — 2016 workshop reference 3217

Fuel Tank — original illustration 1, reference 3217Original colors & callouts · Select to enlarge

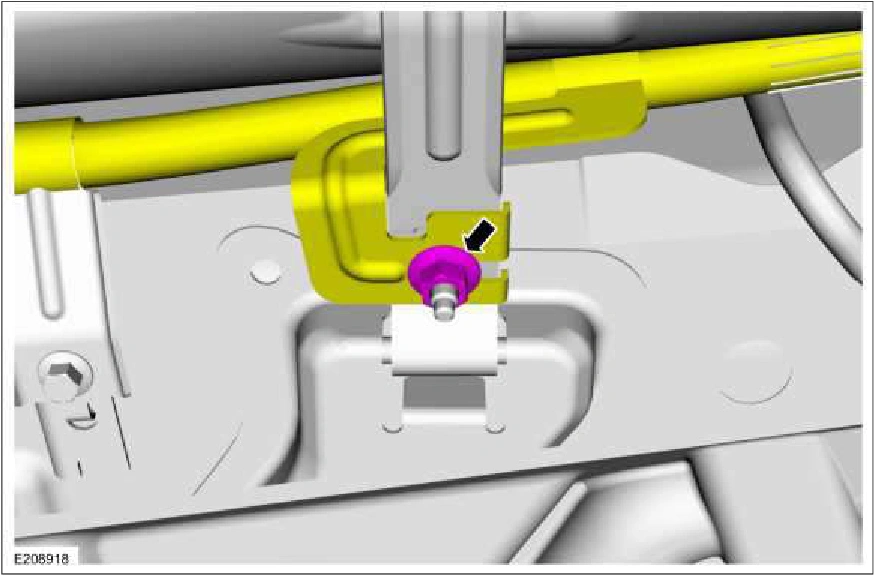

11. Remove the nut and position the RH emergency brake cable bracket aside.

Fuel Tank — original illustration 2, reference 3217Original colors & callouts · Select to enlarge

12. Using an appropriate impact tool and a TP50 "Torx Plus" Socket Driver, remove the fuel tank strap bolts.
