Fuel System Pressure Check

310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L 2016 Mustang Ti-VCT V8 (308kW/418PS)

Procedure revision date:

General Procedures

06/16/2015

Special Tool(s) / General Equipment

310-00C Fuel System - General Information - 5.0L — original illustration 1, reference 3237Original colors & callouts · Select to enlarge	310-D009 (D95L-7211-A) Fuel Pressure Test Kit

Check

NOTE: This Fuel System Pressure Check is for the low pressure side of the system.

1. Release the fuel system pressure. Refer to: Fuel System Pressure Release (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Disconnect the fuel jumper tube-to-fuel rail quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

4. Install the Fuel Pressure Test Kit between the fuel jumper tube and the fuel rail. Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.

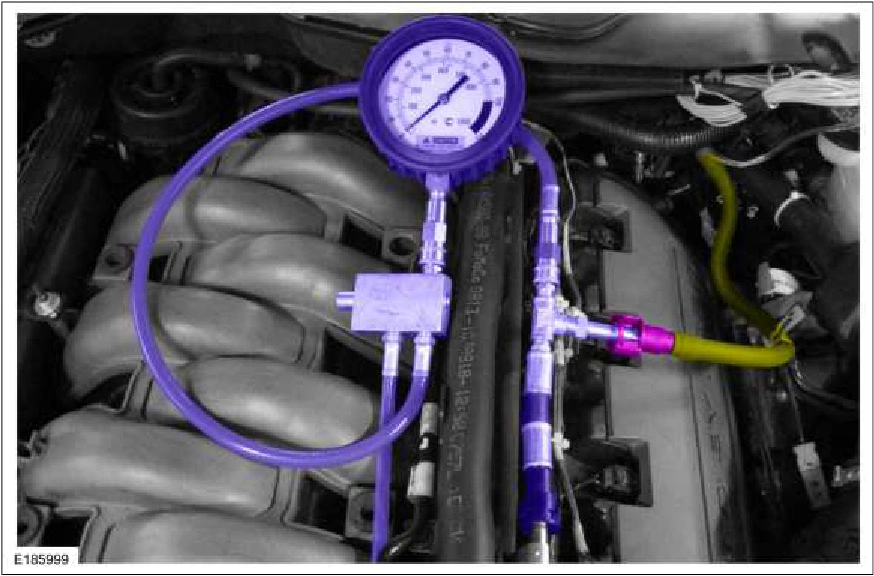

310-00C Fuel System - General Information - 5.0L — original illustration 2, reference 3237Original colors & callouts · Select to enlarge

5. NOTE: The FPDM electrical connector was previously disconnected to release the fuel system pressure and must be reconnected to test the fuel system pressure.

Reconnect the FPDM electrical connector.
