Pump and Sender Unit when removing the lock ring.

8. NOTICE: Carefully install the Fuel Tank Sender Unit lock ring wrench to avoid damage to the Fuel

Pump and Sender Unit when removing the lock ring.

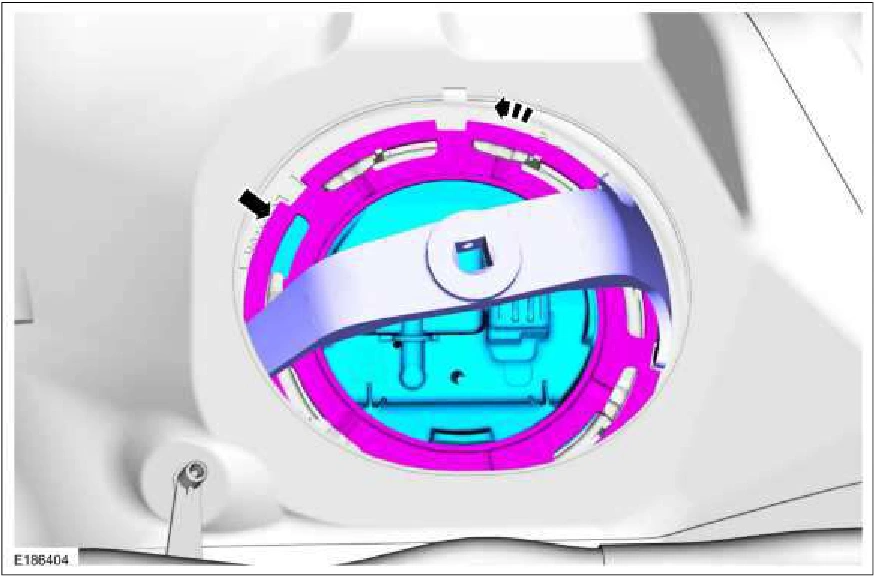

Using the special tool remove the Fuel Pump and Sender Unit lock ring. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

9. NOTICE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float

arm.

Position the Fuel Pump and Sender Unit aside. Using the Fuel Storage Tanker, completely drain the remaining fuel from the LH saddle of the fuel tank.
