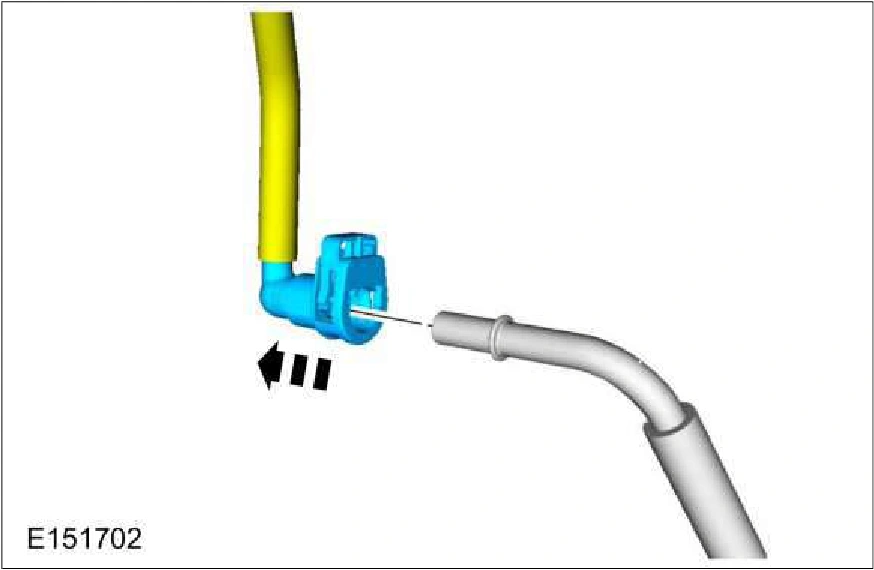

310-00C Fuel System - General Information - 5.0L — original illustration 1, reference 3246Original colors & callouts · Select to enlarge

1. Inspect and clean both quick coupling ends.

310-00C Fuel System - General Information - 5.0L — original illustration 2, reference 3246Original colors & callouts · Select to enlarge

2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.

Source reference 3246
