Fuel Level Sender

310-01C Fuel Tank and Lines - 5.0L 32V Ti-VCT 2016 Mustang

Removal and Installation Procedure revision date: 01/8/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit (310-01C Fuel Tank and Lines - 5.0L 32V Ti-VCT, Removal and Installation).

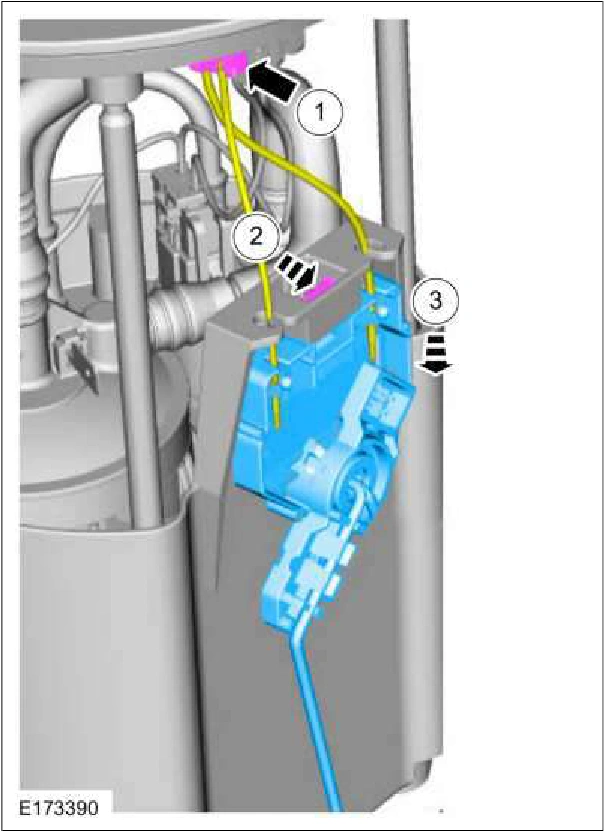

2. Disconnect the electrical connector. Release the locking tab. Remove the Fuel Level Sender.

Fuel Level Sender — original illustration 1, reference 3265Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 3265
