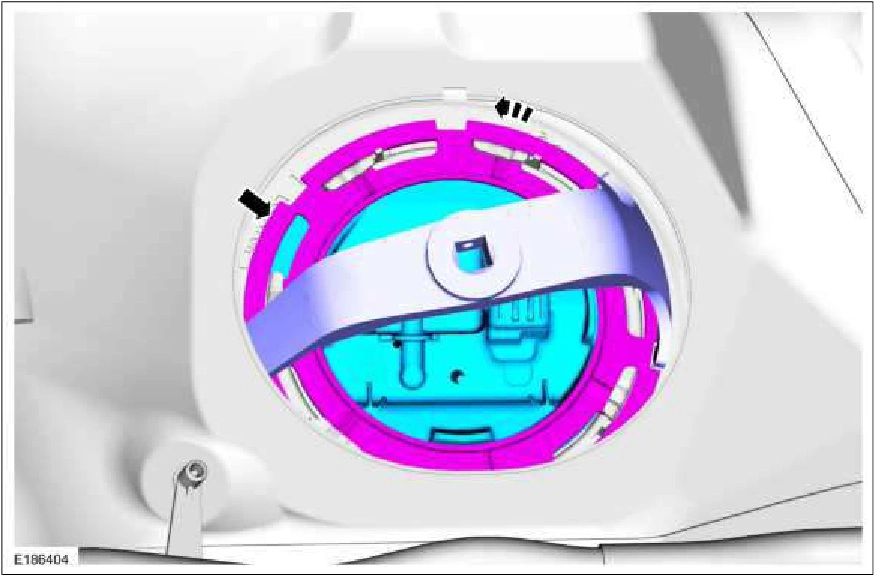

8. NOTICE: Carefully install the Fuel Tank Sender Unit lock ring wrench to avoid damage to the Fuel

Pump and Sender Unit when removing the lock ring.

Using the special tool remove the Fuel Pump and Sender Unit lock ring. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Fuel Level Sensor — original illustration 1, reference 3268Original colors & callouts · Select to enlarge

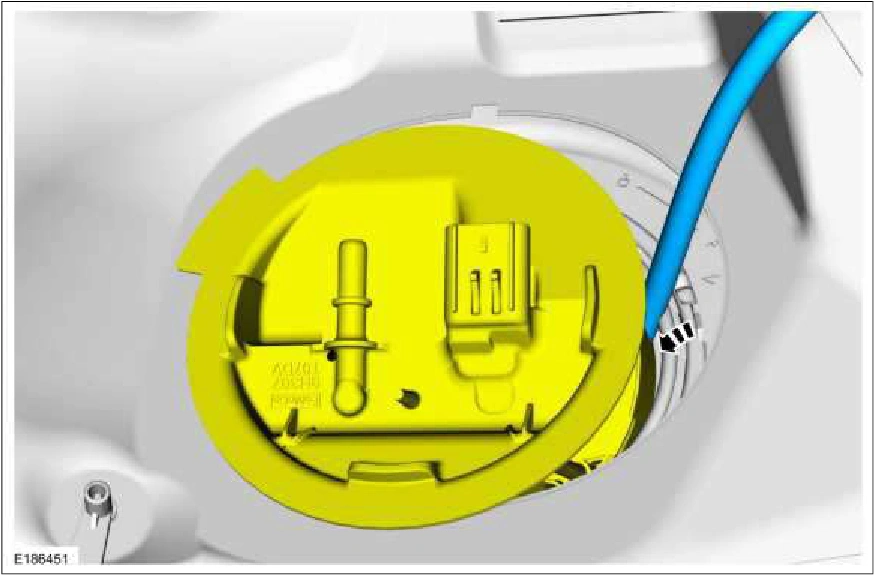

9. NOTICE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float

arm.

Position the Fuel Pump and Sender Unit aside. Using the Fuel Storage Tanker, completely drain the remaining fuel from the LH saddle of the fuel tank.

Fuel Level Sensor — original illustration 2, reference 3268Original colors & callouts · Select to enlarge

10. NOTE: Inspect the surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank.
