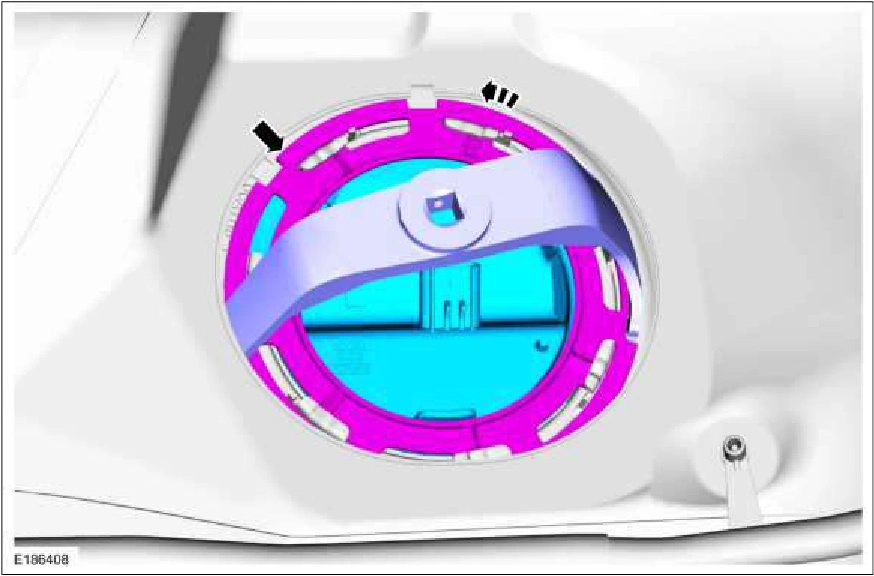

13. NOTICE: Carefully install the Fuel Tank Sender Unit Socket to avoid damage to the fuel level

sensor when removing the lock ring.

Using the special tool remove the Fuel Level Sensor lock ring. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Fuel Level Sensor — original illustration 1, reference 3270Original colors & callouts · Select to enlarge

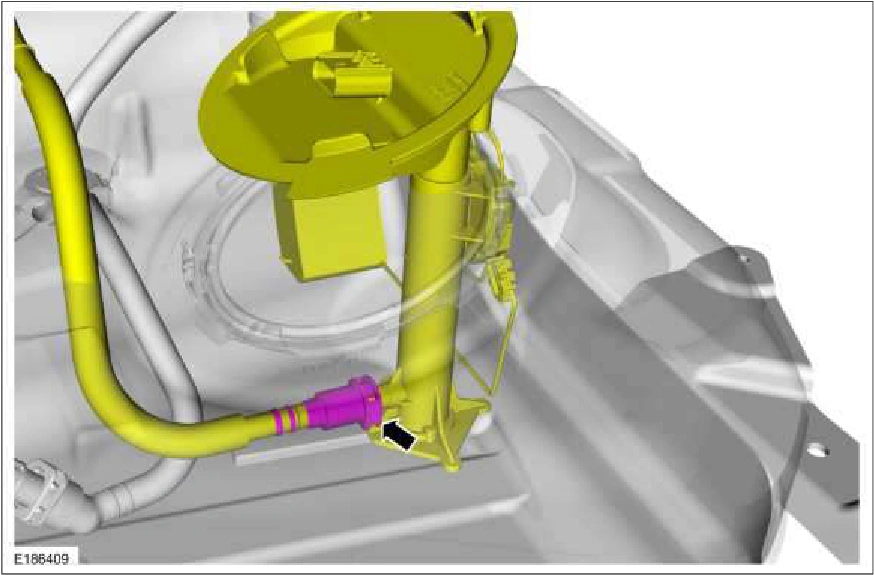

14. Disconnect the internal fuel tube-to-Fuel Level Sensor quick connect coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

Fuel Level Sensor — original illustration 2, reference 3270Original colors & callouts · Select to enlarge

Installation

1. NOTE: Make sure to install a new Fuel Level Sensor O-ring seal.
