Fuel Lines

310-01C Fuel Tank and Lines - 5.0L 32V Ti-VCT 2016 Mustang

Removal and Installation Procedure revision date: 06/26/2015

Removal

1. Remove the fuel tank. Refer to: Fuel Tank (310-01C Fuel Tank and Lines - 5.0L 32V Ti-VCT, Removal and Installation).

2. Remove LH Catalytic Converter. Refer to: Catalytic Converter LH (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

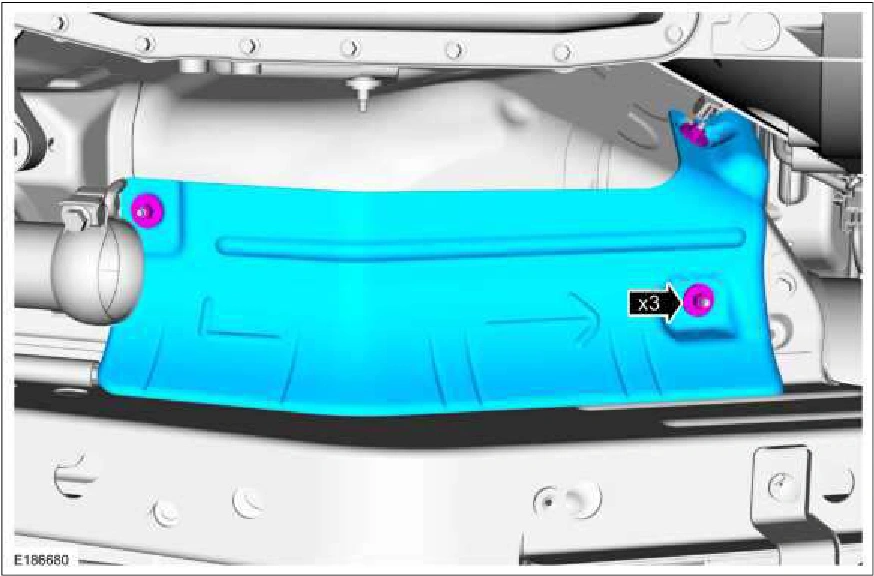

3. Remove the nuts and the heat shield. Torque : 71 lb.in (8 Nm)

Fuel Lines — original illustration 1, reference 3272Original colors & callouts · Select to enlarge

4. Release the fuel line from the retainers.

Source reference 3272
