Fuel Lines — 2016 workshop reference 3274

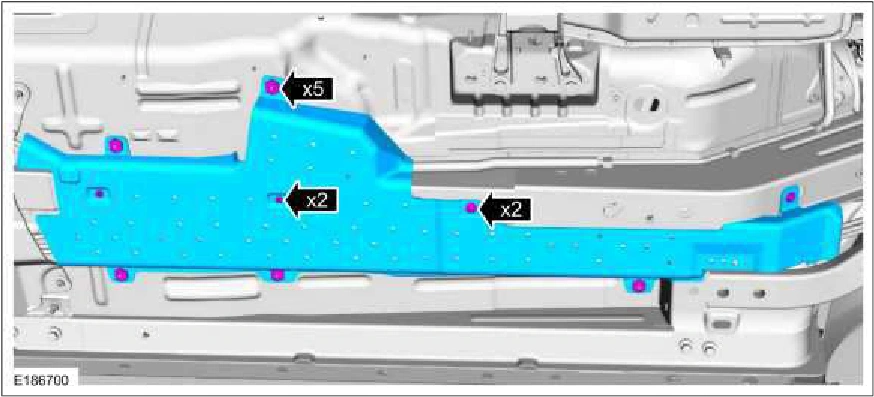

Fuel Lines — original illustration 1, reference 3274Original colors & callouts · Select to enlarge

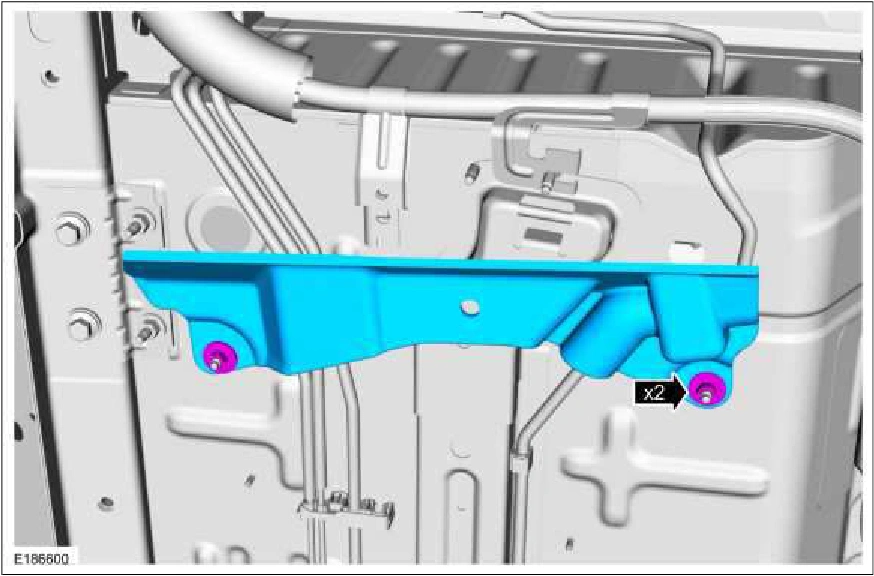

7. Remove the nuts and the fuel tank deflector. Torque : 18 lb.ft (25 Nm)

Fuel Lines — original illustration 2, reference 3274Original colors & callouts · Select to enlarge

8. Release the retainers and remove the fuel line.
