4. NOTE: This step is to remove approximately 3/16 tank of the fuel (3 gallons) from a completely full fuel tank and the majority of any residual fuel in the fuel tank filler pipe, lowering the fuel level below the Fuel Pump and Sender Unit mounting flange.

Attach the Fuel Storage Tanker to the fuel drain tube and remove as much fuel as possible from the tank. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

5. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

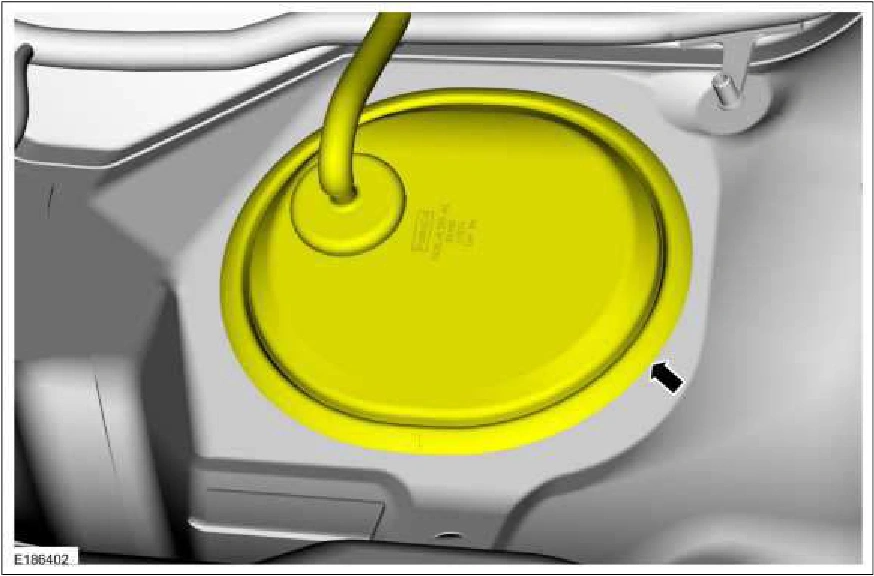

6. Remove the access cover and position aside.

Fuel Pump and Sender Unit — original illustration 1, reference 3277Original colors & callouts · Select to enlarge

7. Disconnect electrical connector and fuel tube quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
