Fuel Pump and Sender Unit — 2016 workshop reference 3278

Fuel Pump and Sender Unit — original illustration 1, reference 3278Original colors & callouts · Select to enlarge

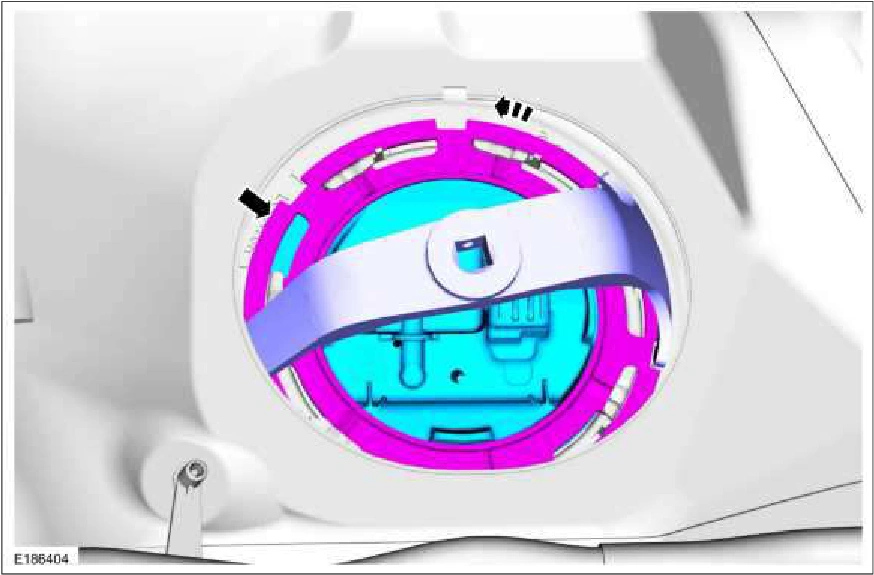

8. Using the lock ring wrench remove the Fuel Pump and Sender Unit lock ring. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Fuel Pump and Sender Unit — original illustration 2, reference 3278Original colors & callouts · Select to enlarge

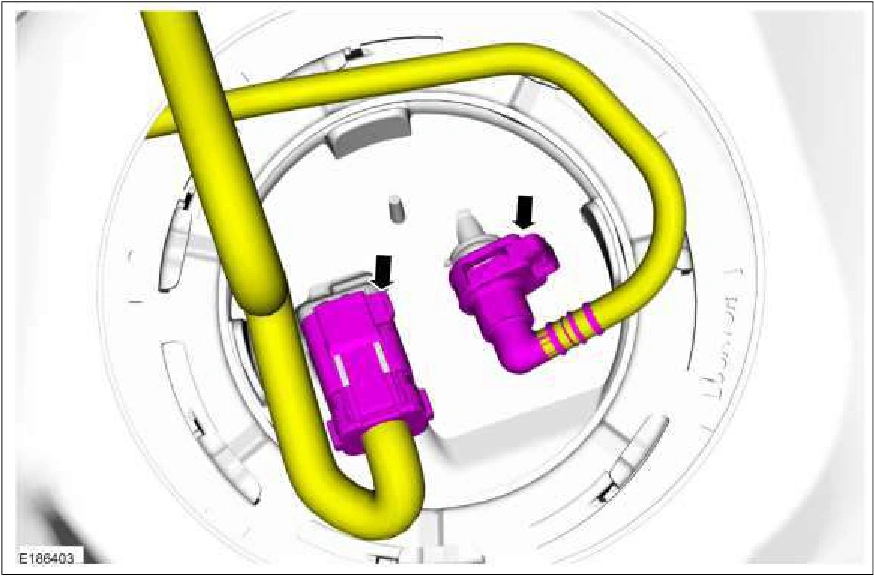

9. Disconnect the internal fuel tube-to-Fuel Pump and Sender Unit quick connect coupling and remove the Fuel Pump and Sender Unit. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
