2016 workshop · Fuel System

Fuel Tank

310-01C Fuel Tank and Lines - 5.0L 32V Ti-VCT

2016 Mustang5.0LReference 3,281 / 6,619HTML edition
← Chapter contentsProcedure contents
Fuel Tank — original illustration 1, reference 3281Original colors & callouts · Select to enlarge

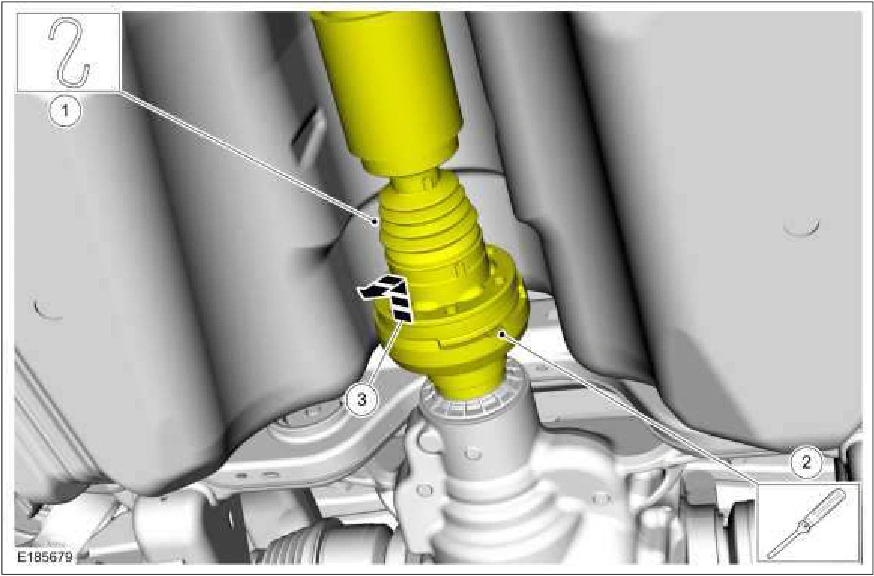

6. NOTICE: Do not over articulate the driveshaft or damage may occur.

Support the driveshaft. Using a screwdriver inserted into the slot on the pinion flange, pry the driveshaft from the pinion flange. Use the General Equipment: Flat Headed Screw Driver Separate the driveshaft from the pinion flange.

Fuel Tank — original illustration 2, reference 3281Original colors & callouts · Select to enlarge

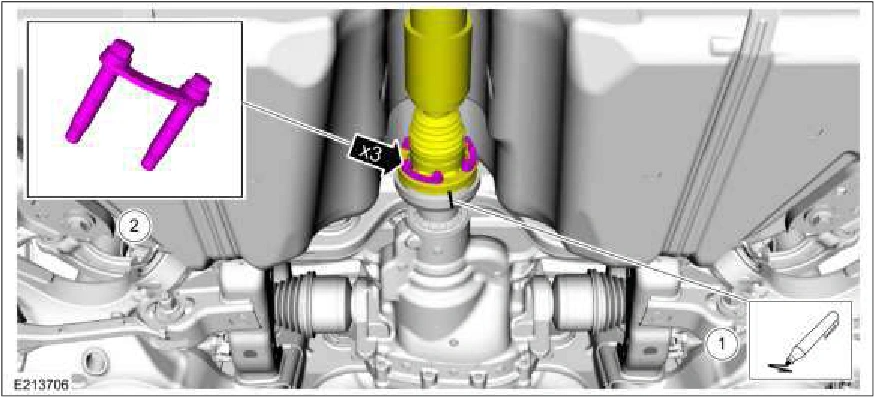

7. NOTICE: Do not over articulate the driveshaft or damage may occur.

Remove the driveshaft center support bearing bolts and lower the driveshaft away from the rear axle flange.
