Fuel Tank — 2016 workshop reference 3283

Fuel Tank — original illustration 1, reference 3283Original colors & callouts · Select to enlarge

10. Remove the nut and position the LH emergency brake cable bracket aside.

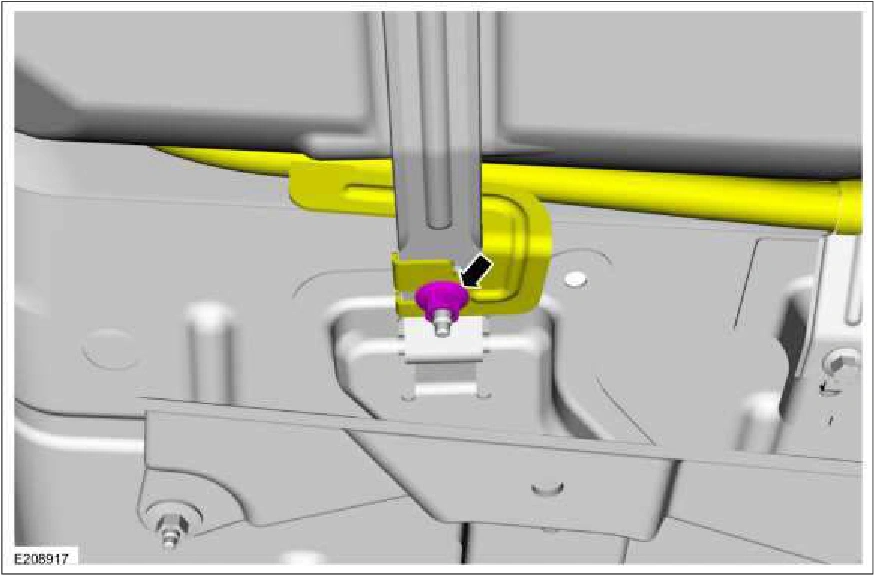

Fuel Tank — original illustration 2, reference 3283Original colors & callouts · Select to enlarge

11. Remove the nut and position the RH emergency brake cable bracket aside.
