Fuel Tank — 2016 workshop reference 3286

Position the fuel tank straps and install the bolts. Torque : 38 lb.ft (52 Nm)

Fuel Tank — original illustration 1, reference 3286Original colors & callouts · Select to enlarge

3. Reposition the LH emergency brake cable bracket and install the nut. Torque : 18 lb.ft (25 Nm)

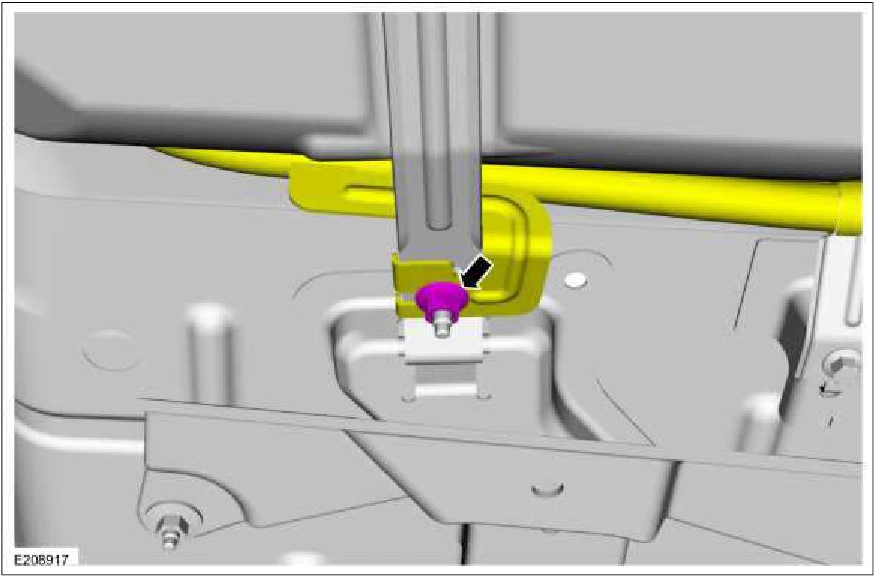

Fuel Tank — original illustration 2, reference 3286Original colors & callouts · Select to enlarge

4. Reposition the RH emergency brake cable bracket and install the nut. Torque : 18 lb.ft (25 Nm)
