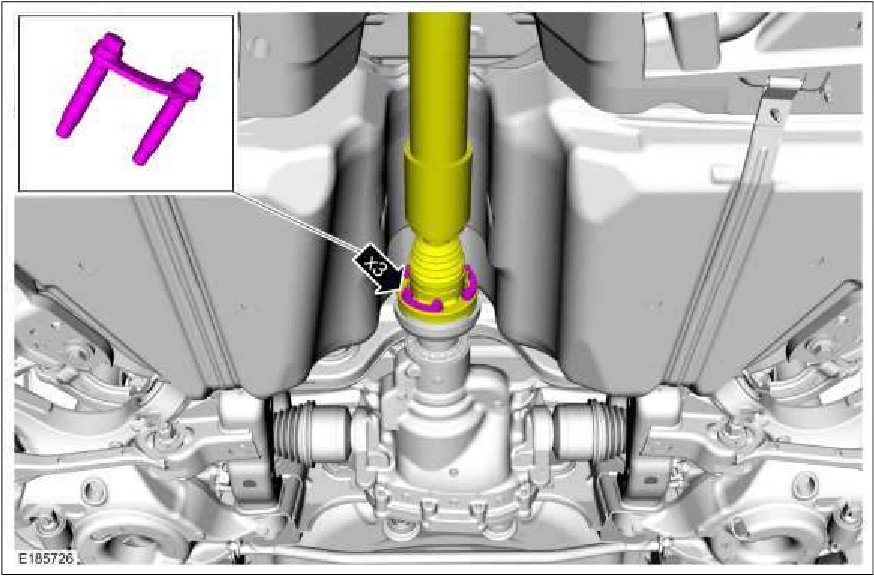

Fuel Tank — original illustration 1, reference 3289Original colors & callouts · Select to enlarge

9. Clean the bolts. Apply thread locking sealant to the bolt threads. Material : Threadlock and Sealer / TA-25-B Install the bolts. Torque : 35 lb.ft (48 Nm)

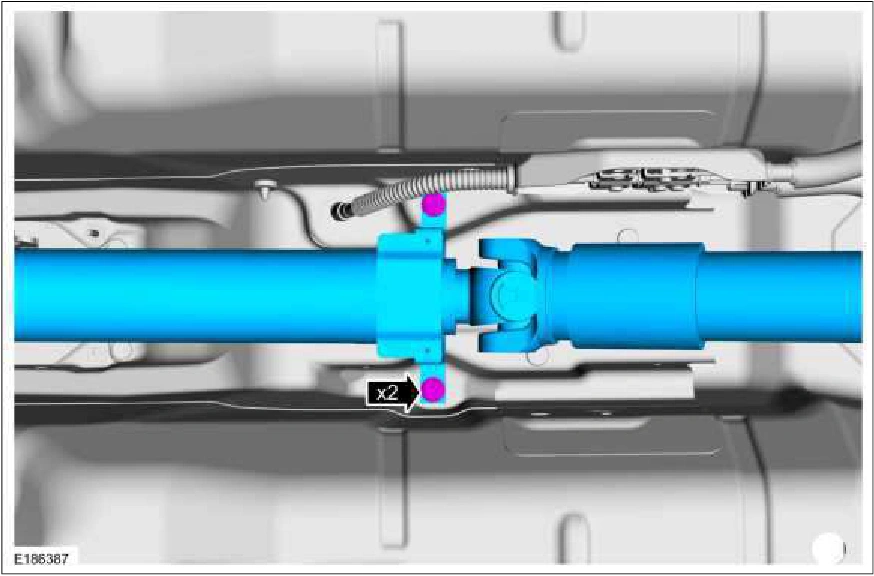

Fuel Tank — original illustration 2, reference 3289Original colors & callouts · Select to enlarge

10. Install the muffler and tailpipe. Refer to: Muffler and Tailpipe (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

11. NOTE: Inspect the surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or
