Fuel Tank — 2016 workshop reference 3290

corroded.

Install a new O-ring seal.

12. NOTICE: Carefully install the Fuel Tank Sender Unit lock ring wrench to avoid damage to the Fuel

Pump and Sender Unit when removing the lock ring.

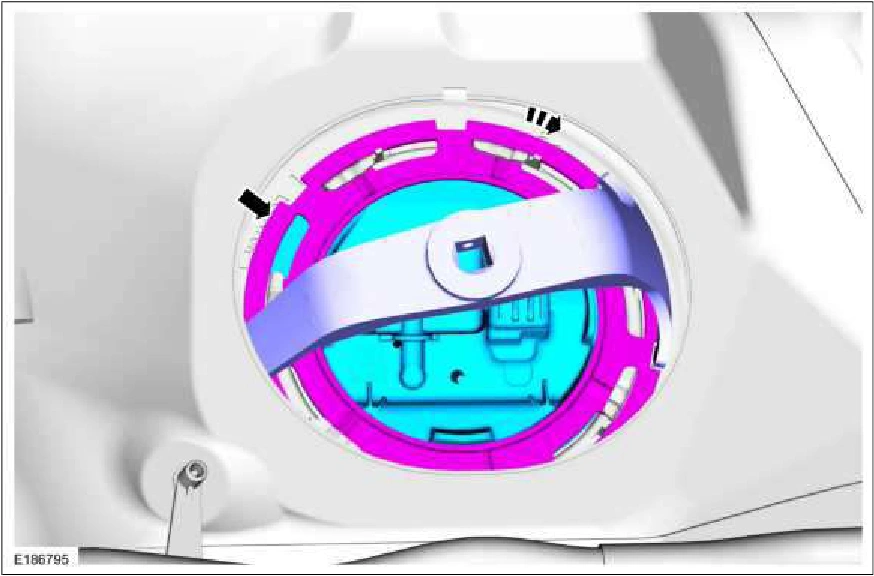

Using the special tool install the Fuel Pump and Sender Unit lock ring. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Fuel Tank — original illustration 1, reference 3290Original colors & callouts · Select to enlarge

13. Connect electrical connector and fuel tube quick release coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

Fuel Tank — original illustration 2, reference 3290Original colors & callouts · Select to enlarge

Source reference 3290
