7. NOTICE: The help of a assistant will be needed. Do not over articulate the driveshaft or damage

may occur.

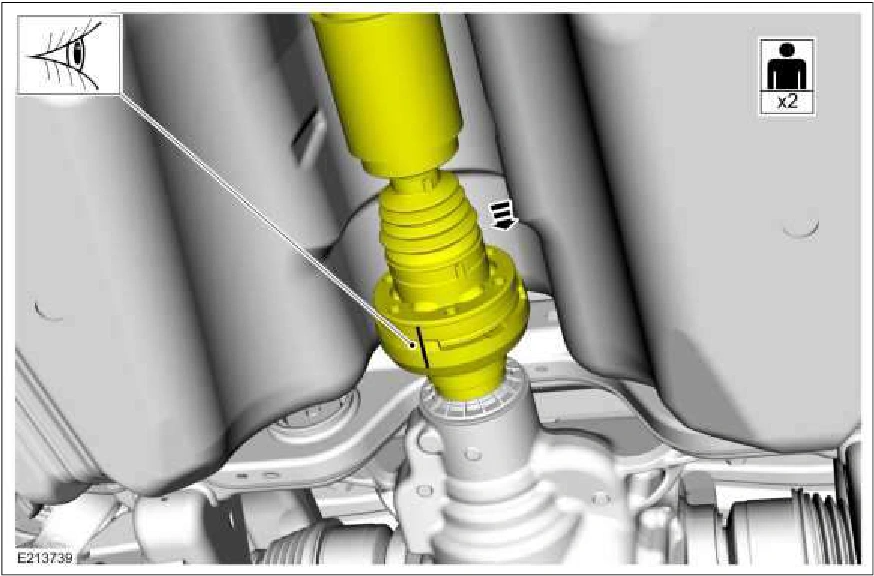

Align the index marks on the driveshaft to the rear axle pinion flange.

Fuel Tank — original illustration 2, reference 3288Original colors & callouts · Select to enlarge

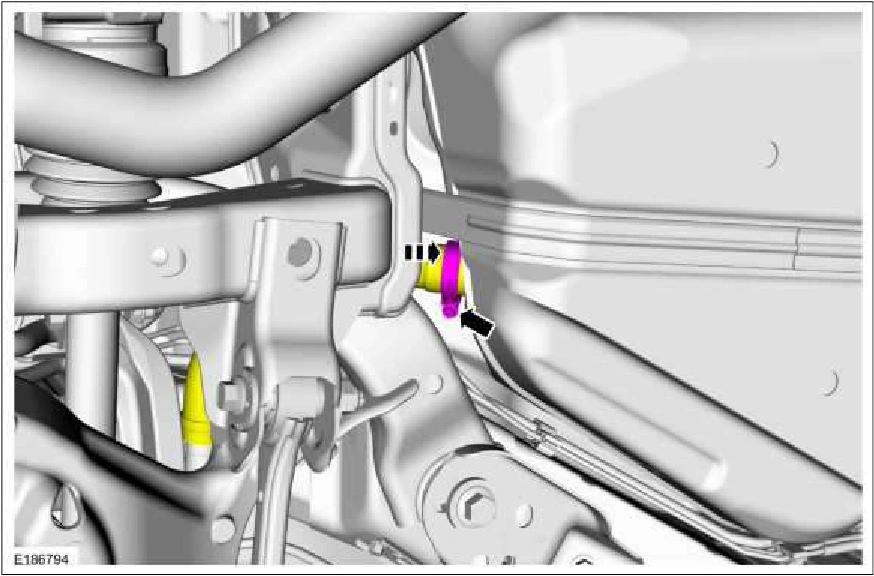

8. Clean the bolts. Apply the thread locking sealant to the bolt threads. Material : Threadlock and Sealer / TA-25-B Install the bolts. Torque : 41 lb.ft (55 Nm)
