Fuel Tank — 2016 workshop reference 3285

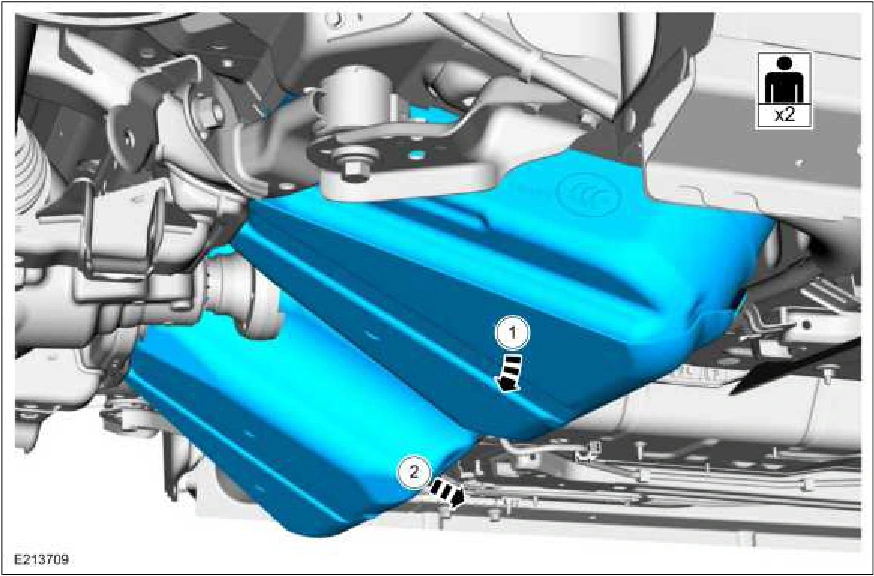

Fuel Tank — original illustration 1, reference 3285Original colors & callouts · Select to enlarge

Installation

Step 1

1. Position the fuel tank above the rear differential.

2. Raise the fuel tank into position.

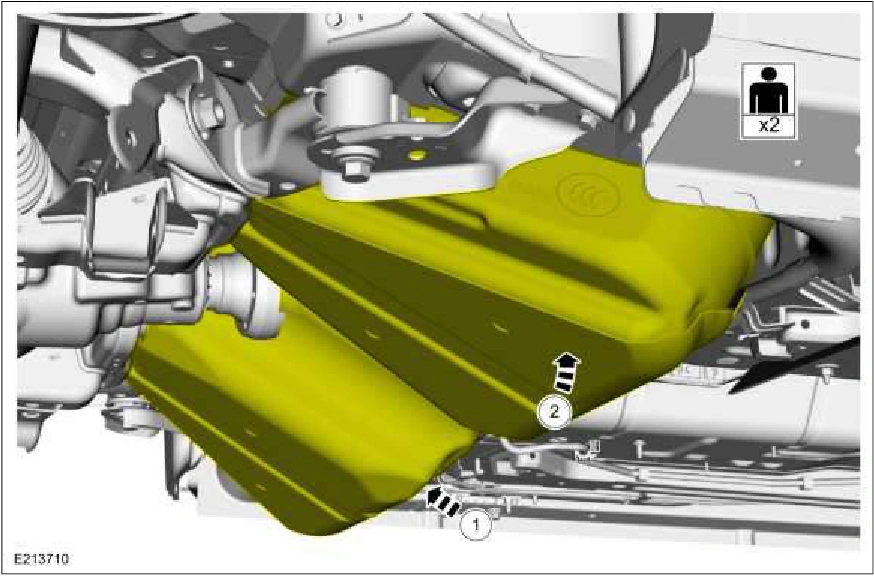

Fuel Tank — original illustration 2, reference 3285Original colors & callouts · Select to enlarge

2. Clean the bolts and weld nuts lightly with a wire brush. Apply the thread locking sealant to the bolt threads. Material : Threadlock and Sealer / TA-25-B

NOTE: To insure that the bolts are threaded in straight, start the bolts by hand and turn several threads before tightening.
