Fuel Tank — 2016 workshop reference 3284

Fuel Tank — original illustration 1, reference 3284Original colors & callouts · Select to enlarge

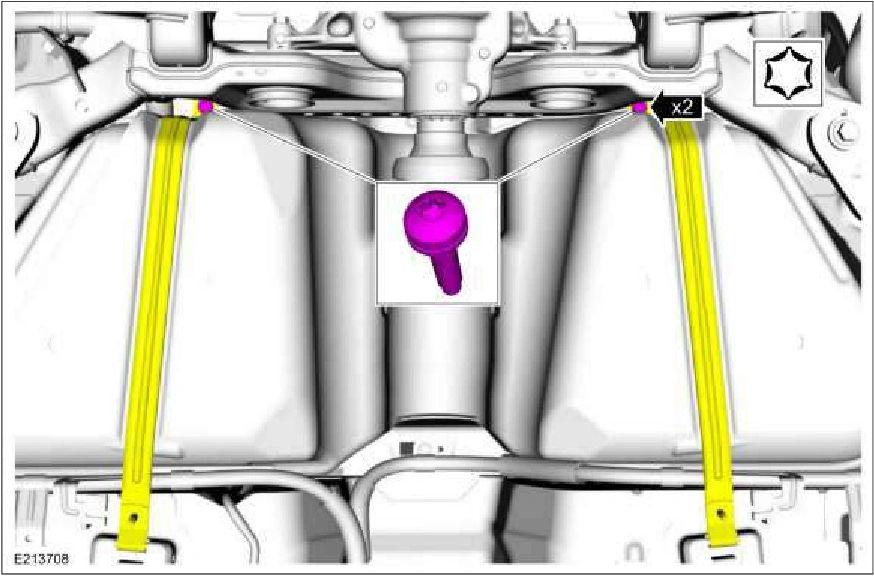

12. Using an appropriate impact tool and a TP50 "Torx Plus" Socket Driver, remove the fuel tank strap bolts.

Fuel Tank — original illustration 2, reference 3284Original colors & callouts · Select to enlarge

13. NOTICE: Once the fuel tank is removed from the vehicle, reinstall the driveshaft center support

bearing bolts by hand and support the rear of the driveshaft with a jackstand or mechanics wire.

1. Lower the front of the fuel tank.

2. Remove the fuel tank.

Source reference 3284
