Fuel Tank — 2016 workshop reference 3282

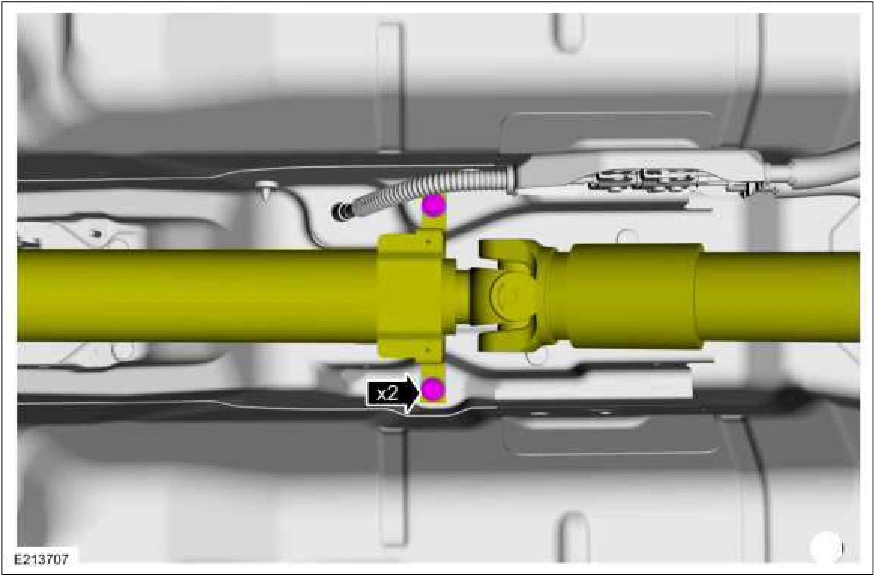

Fuel Tank — original illustration 1, reference 3282Original colors & callouts · Select to enlarge

8. Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.

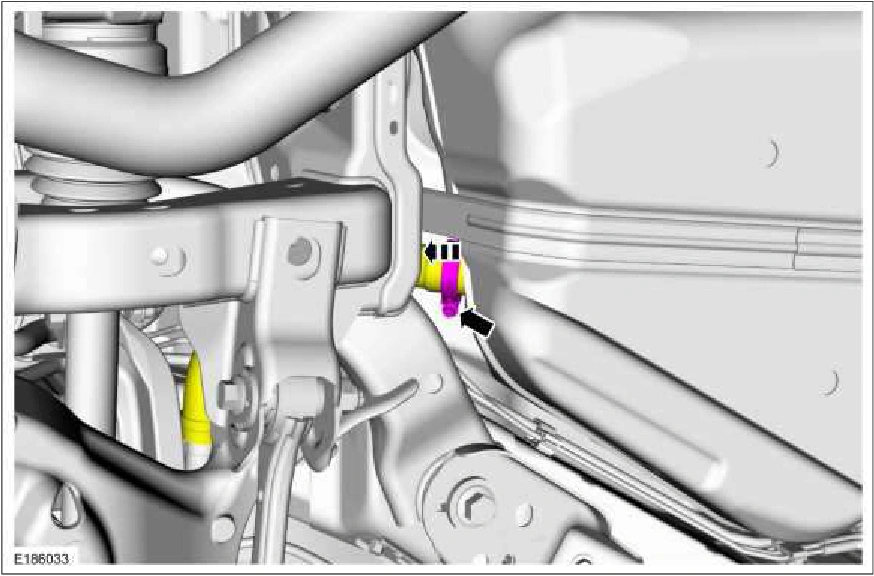

Fuel Tank — original illustration 2, reference 3282Original colors & callouts · Select to enlarge

9. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
