Steering Column Collapsed Check

211-04 Steering Column 2016 Mustang

General Procedures Procedure revision date: 06/4/2015

Inspection

Left hand drive

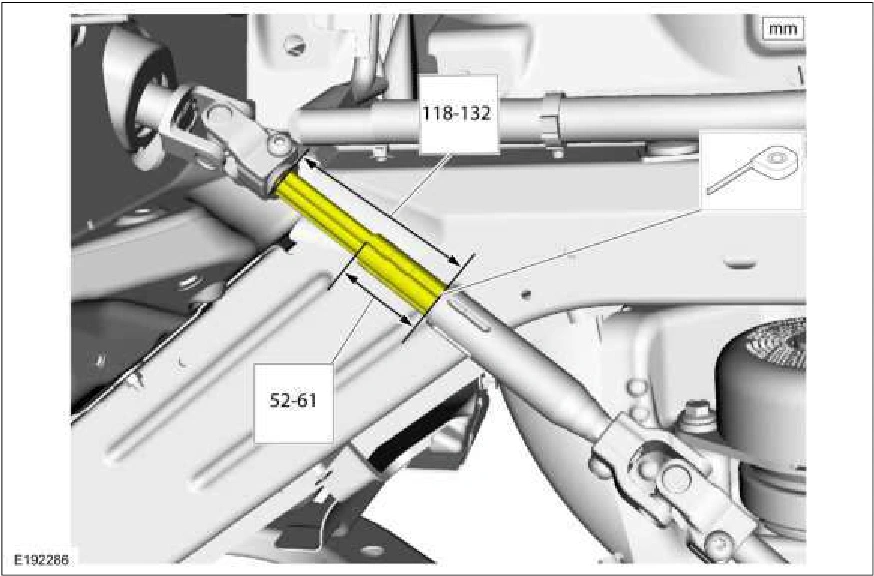

1. With the steering system fully assembled, measure the lengths of the lower shaft. If either length is out of range, discard the lower shaft and install a new one. Do not attempt to repair the shaft.

Steering Column Collapsed Check — original illustration 1, reference 3357Original colors & callouts · Select to enlarge

Right hand drive

2. With the steering system fully assembled, measure the lengths of the lower shaft. If either length is out of range, discard the lower shaft and install a new one. Do not attempt to repair the shaft.
