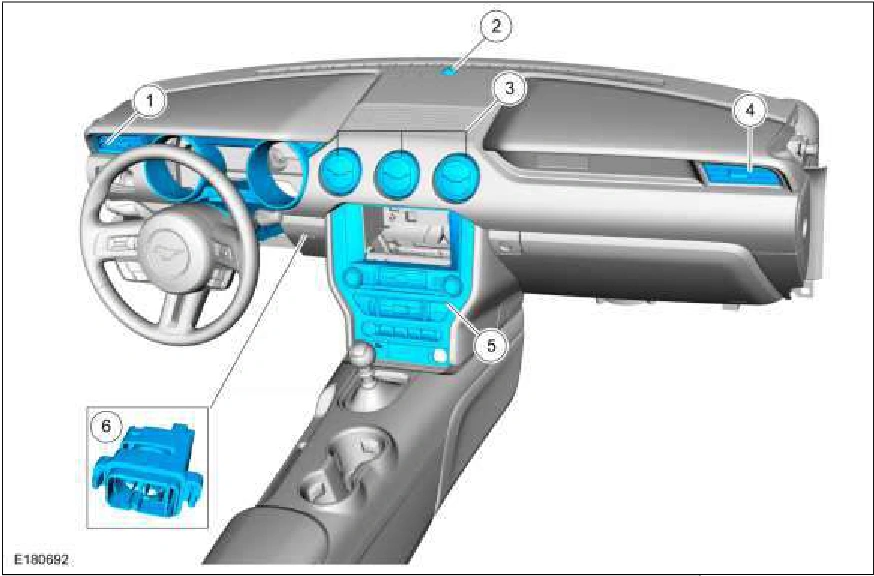

Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component
Location
NOTE: 5.0L shown all other engines similar.
Item | Description | |
1 | Driver Side Register | |
2 | Sunload Sensor | |
3 | Center Registers | |
4 | Passenger Side Register | |
5 | FCIM | |
6 | In-Vehicle Temperature And Humidity Sensor | |
