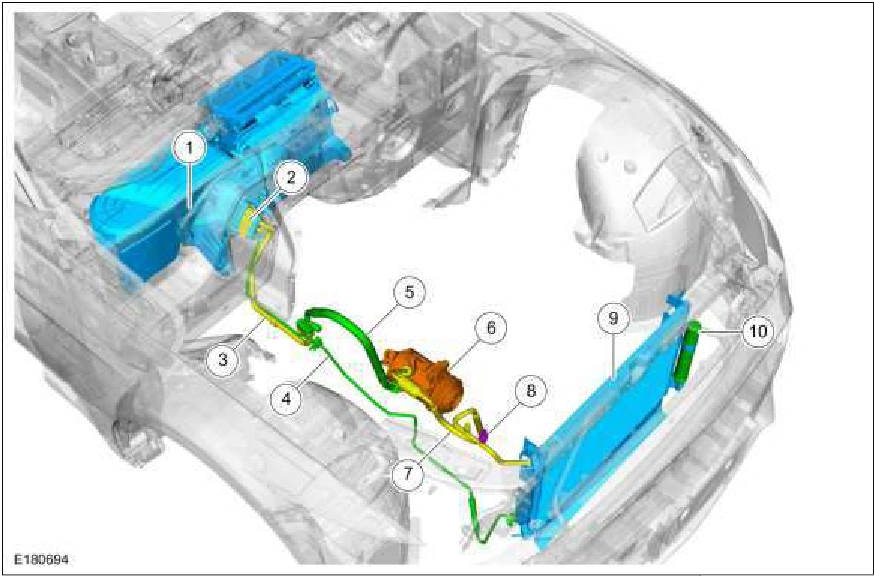

Item | Description | |
1 | Climate Control Housing | |
2 | Thermostatic Expansion Valve | |
3 | Evaporator Outlet Line | |
4 | Condenser Outlet Line | |
5 | A/C Compressor Inlet Line | |
6 | A/C Compressor | |
7 | A/C Compressor Outlet Line | |
8 | A/C Pressure Transducer | |
9 | Condenser | |
10 | Receiver Drier | |
