No	REPAIR the circuit.

P3 CHECK THE IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR CIRCUITS FOR AN OPEN

Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C233-3		C2402A-3
C233-5		C2402A-2

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C233-1		C2402B-27
C233-2		C2402B-29
C233-4		C2402B-19

Positive Lead	Measurement / Action	Negative Lead

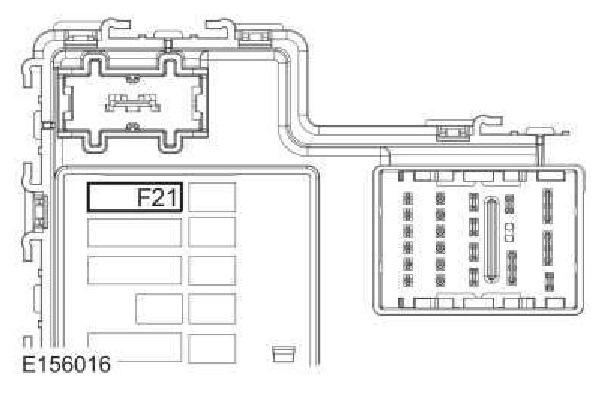

C233-6		BCM fuse 21 cavity, (component side) Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) — original illustration 1, reference 3584Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C233-6

BCM fuse 21 cavity, (component side)

Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) — original illustration 1, reference 3584Original colors & callouts · Select to enlarge

Are the resistances less than 3 ohms?

Yes		GO to P4
No	REPAIR the circuit.

P4 CHECK THE IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR CIRCUITS FOR A SHORT TOGETHER
