Air Conditioning (A/C) Clutch Air Gap Adjustment

412-00 Climate Control System - General Information 2016 Mustang

General Procedures Procedure revision date: 03/8/2016

Air Conditioning (A/C) Clutch Air Gap Adjustment

Activation

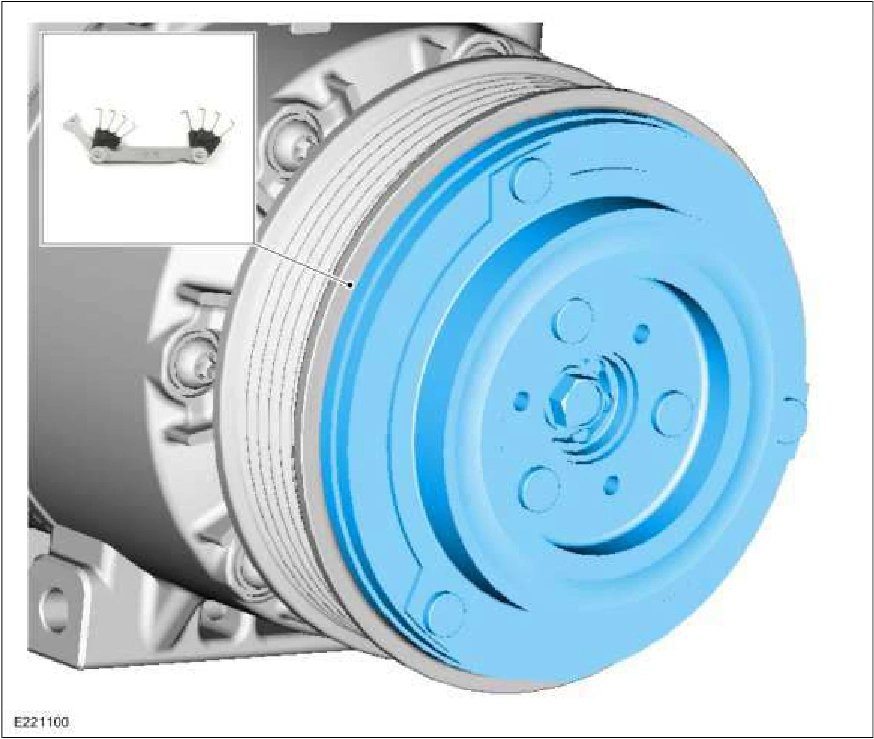

1. Check the A/C clutch air gap at 3 equally spaced places between the clutch plate and the A/C clutch pulley. Refer to Specifications in Group 412.

2. Using the universal clutch holding tool, hold the A/C clutch disc and hub, remove the A/C clutch disc and bolt. Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification. Refer to Specifications in Group 412. Torque : 159 lb.in (18 Nm)
