Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil

412-00 Climate Control System - General Information 2016 Mustang

General Procedures Procedure revision date: 03/30/2016

Base Part Number: 19D786

Special Tool(s) / General Equipment

Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil — original illustration 1, reference 3589Original colors & callouts · Select to enlarge	412-001 (T71P-19703-B) Remover, Compressor Pulley

Activation

1. Remove the A/C compressor.

2. Using the universal clutch holding tool, hold the clutch and remove the A/C clutch disc and hub bolt. Torque : 159 lb.in (18 Nm)

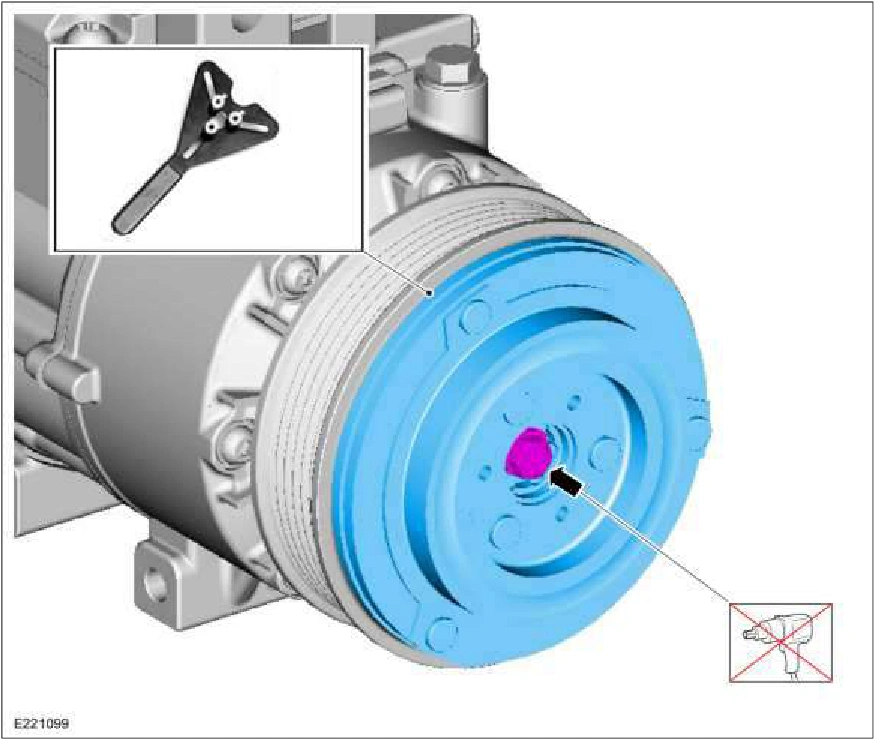

Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil — original illustration 2, reference 3589Original colors & callouts · Select to enlarge

3. Remove the A/C compressor pulley snap ring.

Source reference 3589
