Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil

412-00 Climate Control System - General Information

2016 MustangReference 3,590 / 6,619HTML edition

← Chapter contents Procedure contents

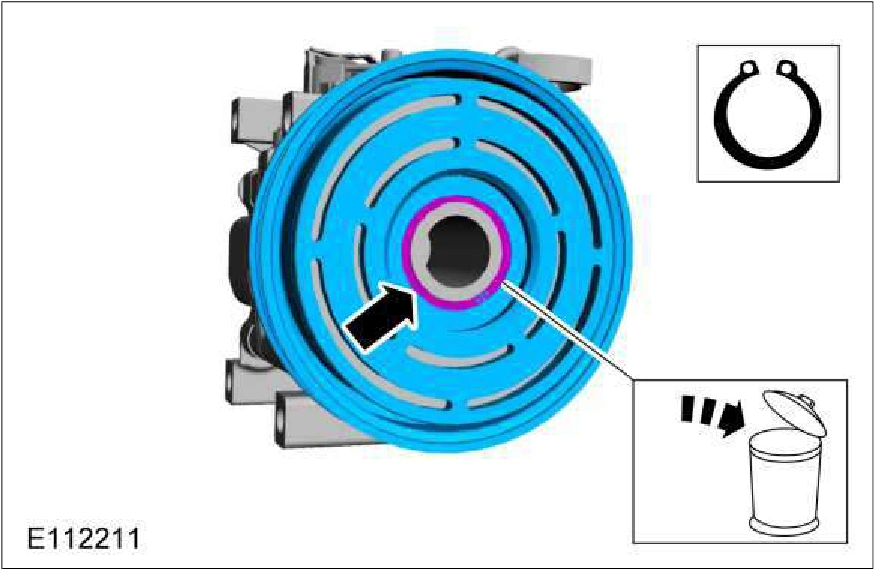

Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil — original illustration 1, reference 3590Original colors & callouts · Select to enlarge

4. NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

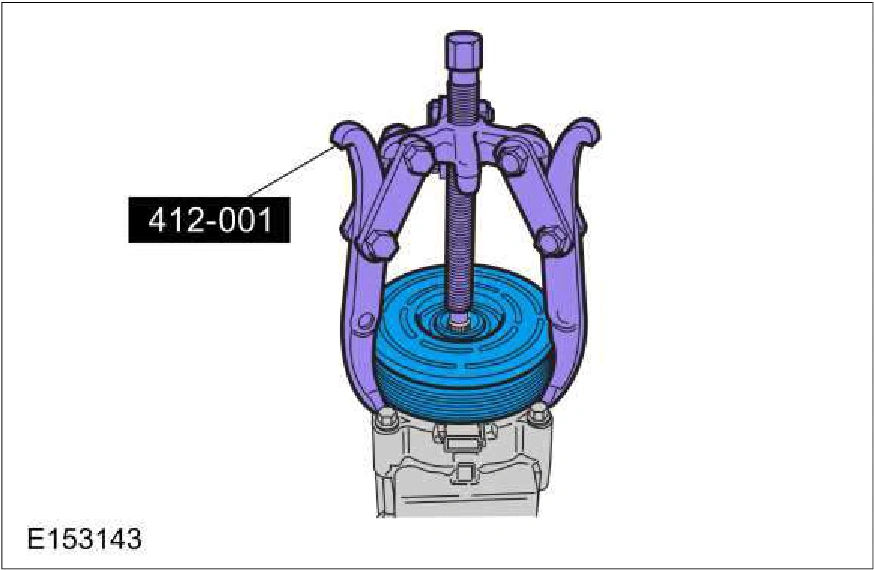

Remove the A/C compressor pulley. Install Special Service Tool: 412-001 (T71P-19703-B) Remover, Compressor Pulley.

Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil — original illustration 2, reference 3590Original colors & callouts · Select to enlarge

5. Remove the A/C clutch field coil electrical connector retainer. Torque : 35 lb.in (4 Nm)

Source reference 3590
