Air Conditioning (A/C) Compressor Outlet Line - 3.7L Duratec (227kW/301PS)

Base Part Number: 19972

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. NOTE: Discard the O-ring seals and gaskets.

NOTE: Make sure that all openings are sealed.

Remove the nut and disconnect the A/C compressor outlet line. Torque : 159 lb.in (18 Nm)

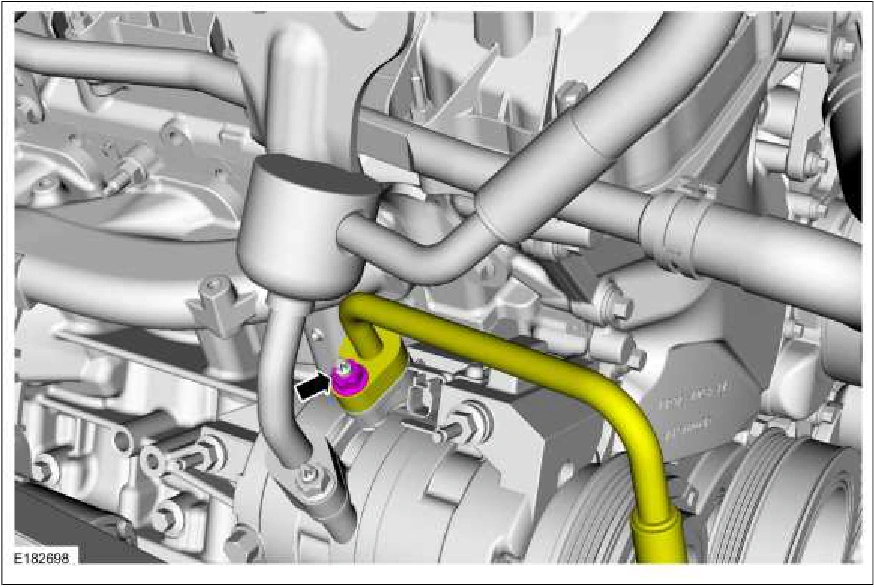

Air Conditioning (A/C) Compressor Outlet Line - 3.7L Duratec (227kW/301PS) — original illustration 1, reference 3674Original colors & callouts · Select to enlarge

3. NOTE: Discard the O-ring seals and gaskets.

1. Disconnect the A/C pressure transducer electrical connector.

2. Remove the nut and the A/C compressor outlet line. Torque : 159 lb.in (18 Nm)
