412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Air Conditioning (A/C) Compressor Outlet Line - 2.3L EcoBoost (201kW/273PS)

Base Part Number: 19972

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. NOTE: Discard the O-ring seals and gaskets.

NOTE: Make sure that all openings are sealed.

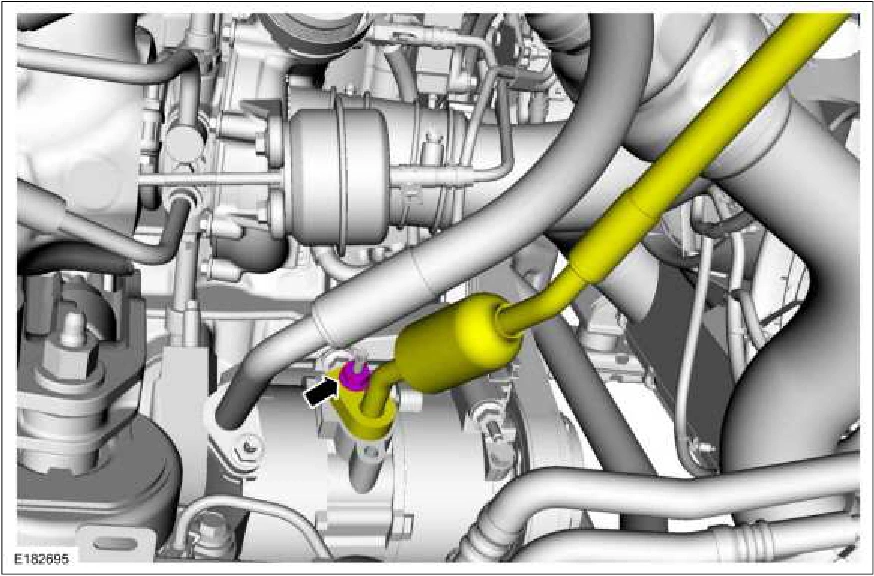

Remove the nut and disconnect the A/C compressor outlet line. Torque : 159 lb.in (18 Nm)

Air Conditioning (A/C) Compressor Outlet Line - 2.3L EcoBoost (201kW/273PS) — original illustration 1, reference 3671Original colors & callouts · Select to enlarge

3. NOTE: Discard the O-ring seals and gaskets.

1. Disconnect the A/C pressure transducer connector.

2. Remove the nut and the A/C compressor outlet line. Torque : 159 lb.in (18 Nm)
