Air Conditioning (A/C) Compressor - 5.2L 32V Ti-VCT — 2016 workshop reference 3668

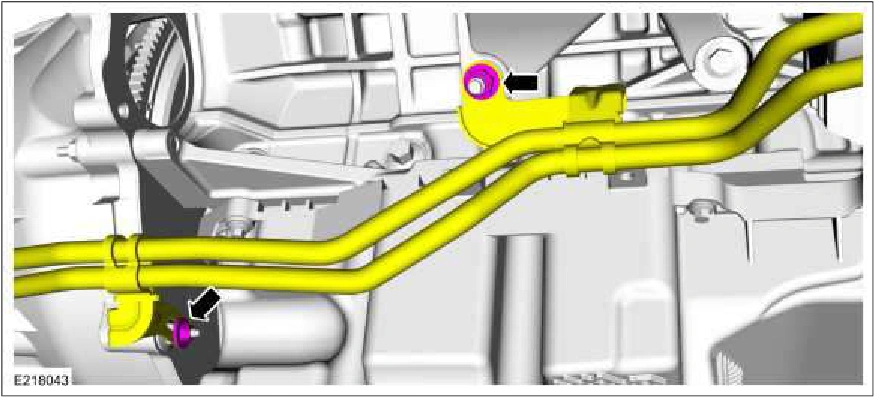

Air Conditioning (A/C) Compressor - 5.2L 32V Ti-VCT — original illustration 1, reference 3668Original colors & callouts · Select to enlarge

4. NOTE: Discard the O-ring seals and gaskets.

NOTE: Make sure that all openings are sealed.

Remove the wiring harness retainers and disconnect the electrical connector. Remove the nuts and disconnect the A/C compressor inlet and outlet lines. Torque : 159 lb.in (18 Nm)

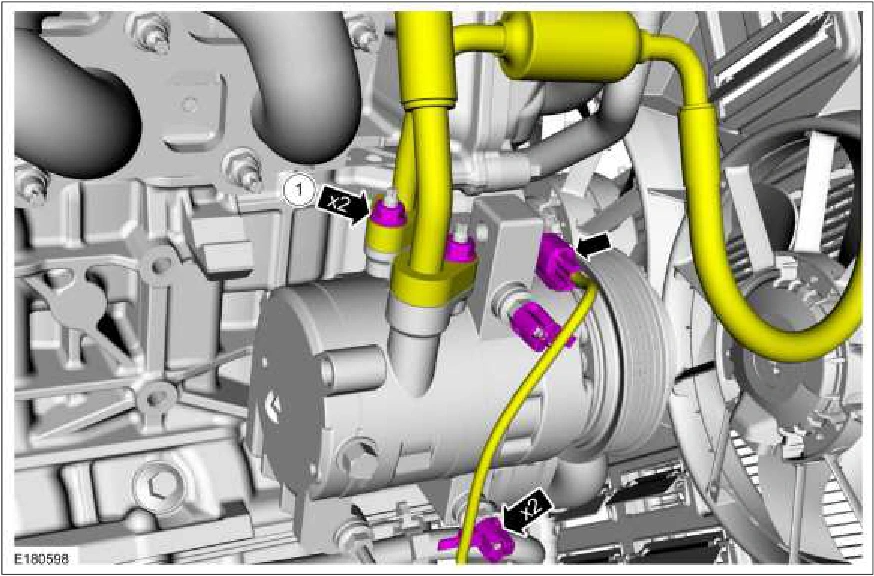

Air Conditioning (A/C) Compressor - 5.2L 32V Ti-VCT — original illustration 2, reference 3668Original colors & callouts · Select to enlarge

5. NOTE: Studbolts are to be discarded.

Remove and discard the studbolts and the A/C compressor.

Source reference 3668
