Air Conditioning (A/C) Compressor - 5.2L 32V Ti-VCT

412-00 Climate Control System - General Information

2016 MustangReference 3,669 / 6,619HTML edition

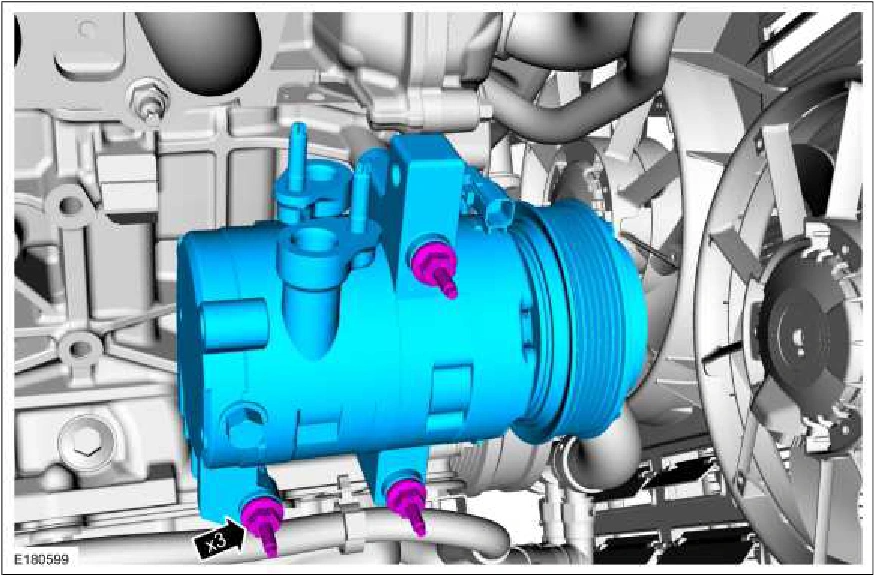

Air Conditioning (A/C) Compressor - 5.2L 32V Ti-VCT — original illustration 1, reference 3669Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Install new O-ring seals and gasket seals.

3. Add the correct amount of clean PAG oil to the refrigerant system. Refer to: Refrigerant Oil Adding (412-00 Climate Control System - General Information, General Procedures).

4. NOTE: Studbolts are to be discarded.

Loosely install the A/C compressor studbolts to make sure the dowels are seated correctly, tighten in the sequence shown. Torque : Stage 1: 18 lb.ft (25 Nm) Stage 2: 90°

Source reference 3669
