Air Conditioning (A/C) Compressor - 5.0L 32V Ti-VCT — 2016 workshop reference 3665

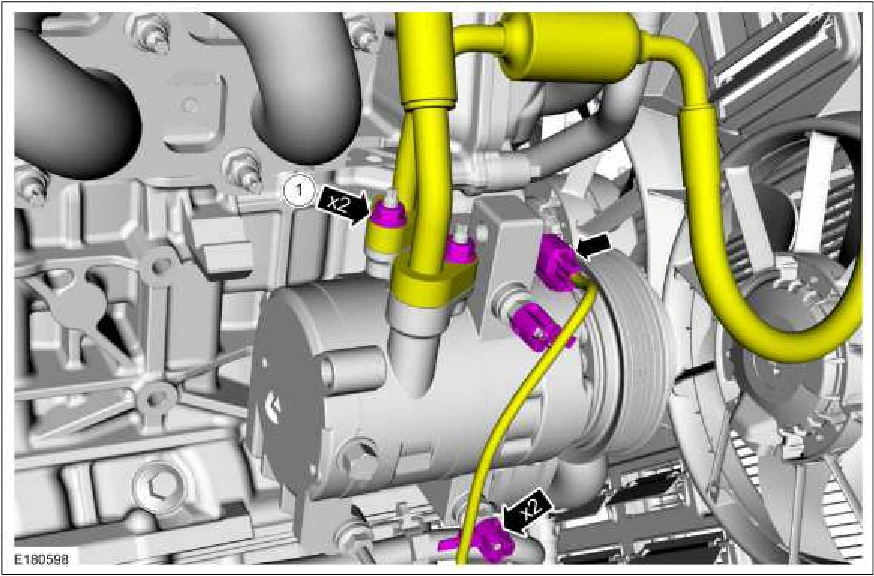

Air Conditioning (A/C) Compressor - 5.0L 32V Ti-VCT — original illustration 1, reference 3665Original colors & callouts · Select to enlarge

6. Remove the studbolts and the A/C compressor. Torque : 18 lb.ft (25 Nm)

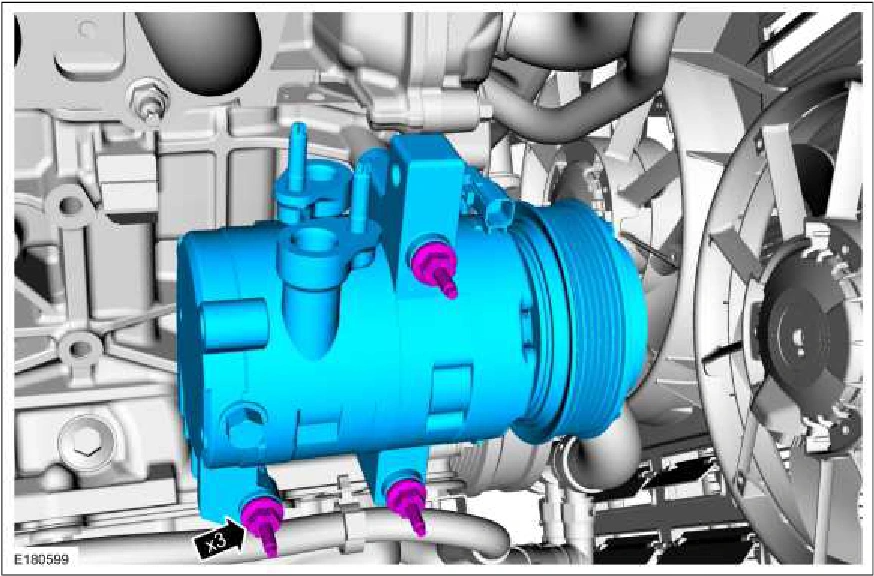

Air Conditioning (A/C) Compressor - 5.0L 32V Ti-VCT — original illustration 2, reference 3665Original colors & callouts · Select to enlarge

Installation

1. Add the correct amount of clean PAG oil to the refrigerant system. Refer to: Refrigerant Oil Adding (412-00 Climate Control System - General Information, General Procedures).

2. Install new O-ring seals and gasket seals.

3. To install, reverse the removal procedure.

4. Tighten the A/C compressor studbolts in the sequence shown.

Source reference 3665
