412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Air Conditioning (A/C) Pressure Transducer

Base Part Number: 19D594

Removal

NOTE: 5.0L engine shown, all others are similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the electrical connector and remove the A/C pressure transducer. Torque : 62 lb.in (7 Nm)

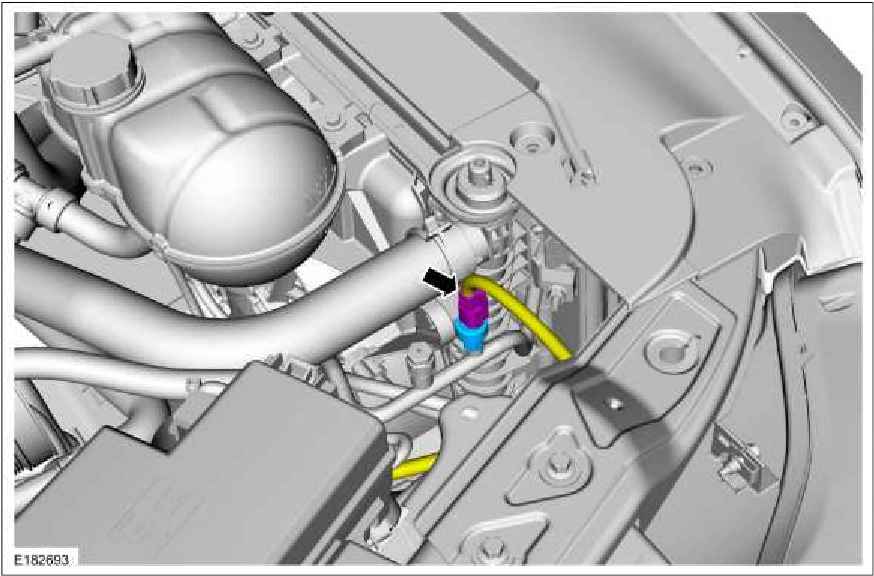

Air Conditioning (A/C) Pressure Transducer — original illustration 1, reference 3687Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
