Air Distribution Door Actuator

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 07/15/2015

Base Part Number: 19E616

Removal

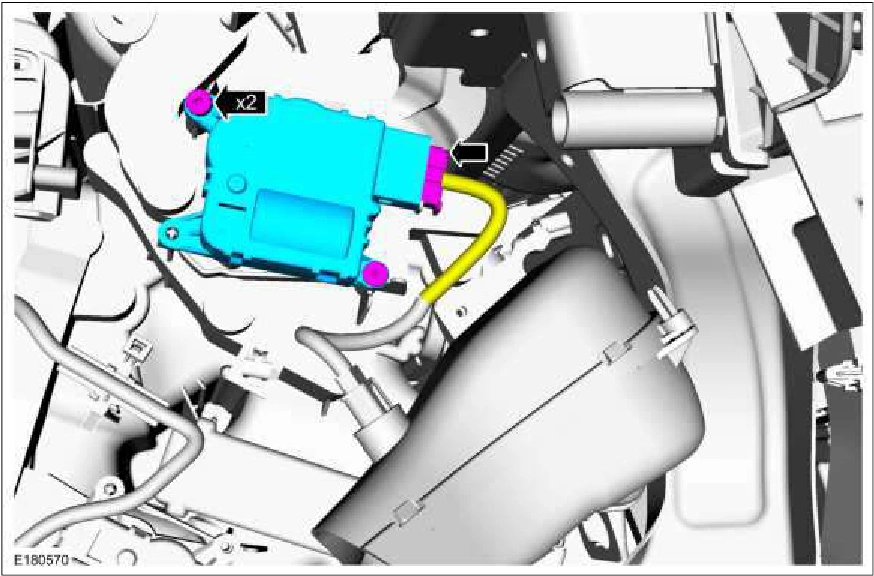

1. Remove the retainers, the air distribution door actuator and disconnect the electrical connector.

Air Distribution Door Actuator — original illustration 1, reference 3689Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
