Air Inlet Door Actuator

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Base Part Number: 19E616

Removal

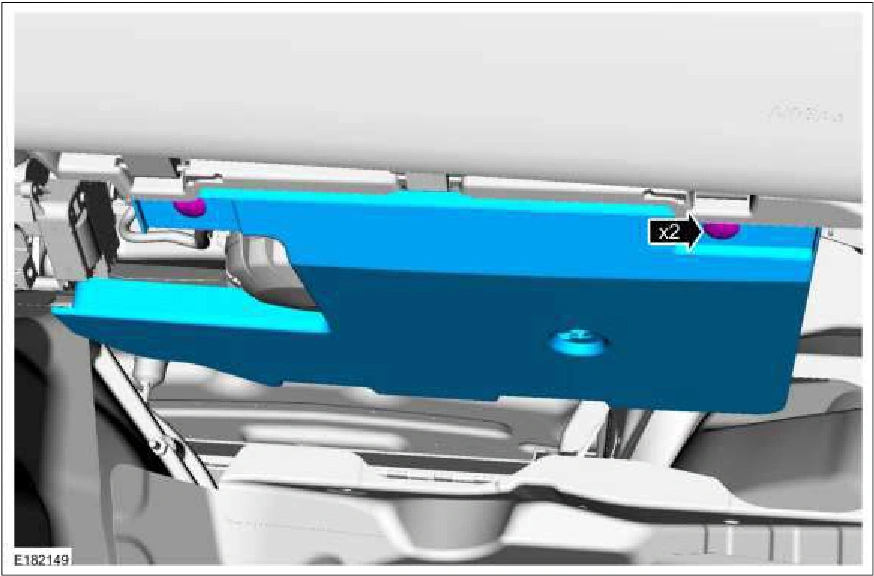

1. Remove the retainers and the RH lower instrument panel insulator.

Air Inlet Door Actuator — original illustration 1, reference 3691Original colors & callouts · Select to enlarge

2. Disconnect the air inlet door actuator connector, remove the retainers and the air inlet door actuator.

Source reference 3691
