Valve Cover RH — 2016 workshop reference 369

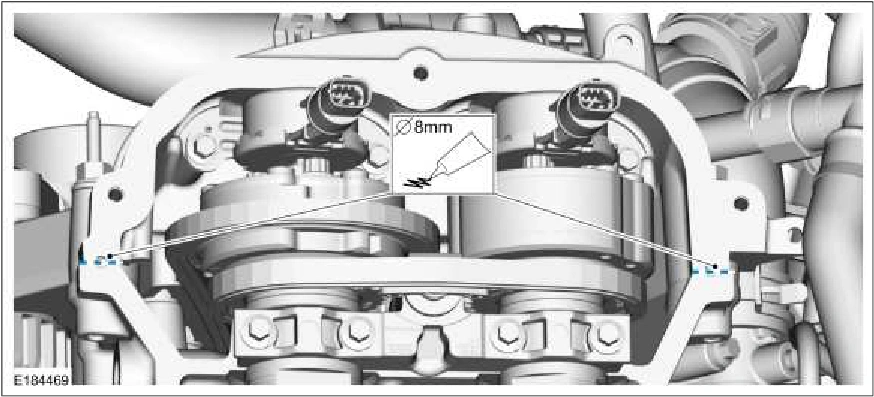

Valve Cover RH — original illustration 1, reference 369Original colors & callouts · Select to enlarge

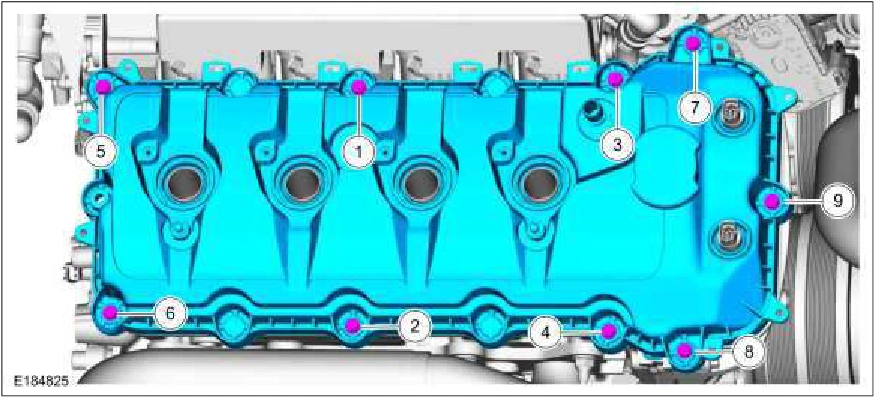

5. Install the valve cover and tighten the bolts. Torque : 89 lb.in (10 Nm)

Valve Cover RH — original illustration 2, reference 369Original colors & callouts · Select to enlarge

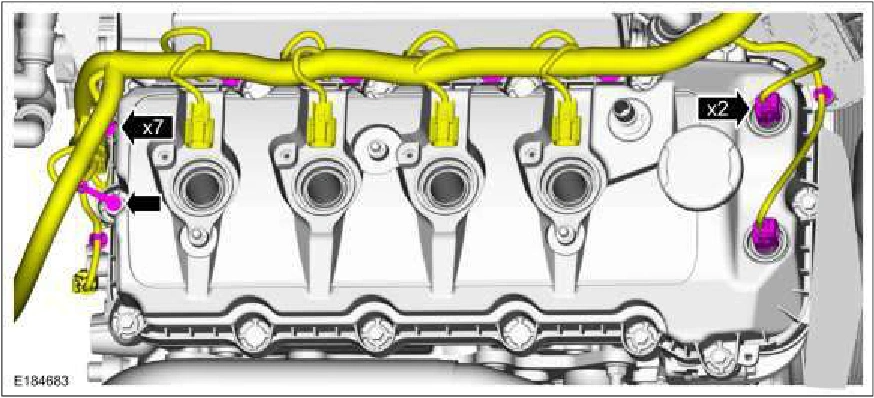

6. Attach the wiring harness retainers. Connect the VCT variable force solenoid electrical connectors.

Valve Cover RH — original illustration 3, reference 369Original colors & callouts · Select to enlarge

7. Install the RH ignition coils. Refer to: Ignition Coil-On-Plug (303-07C Engine Ignition - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

Source reference 369
