Valve Cover RH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 370 / 6,619HTML edition
← Chapter contentsProcedure contents

8. Install the battery heat shield and fasteners. Torque : 80 lb.in (9 Nm)

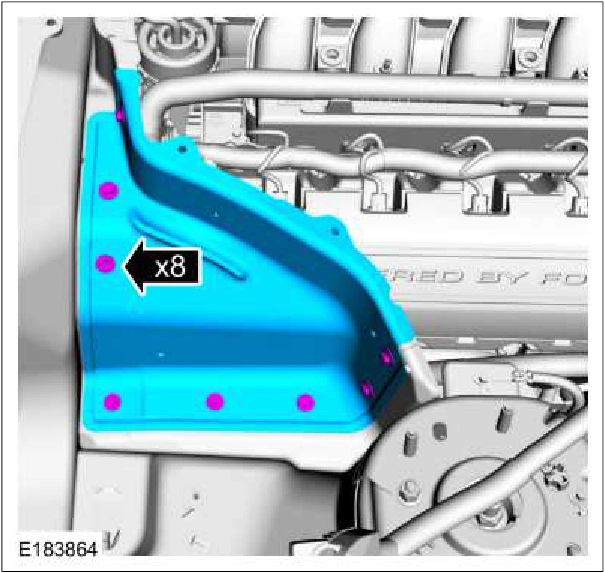

Valve Cover RH — original illustration 1, reference 370Original colors & callouts · Select to enlarge

9. Install the cowl extension and fasteners. Torque : 26 lb.ft (35 Nm)

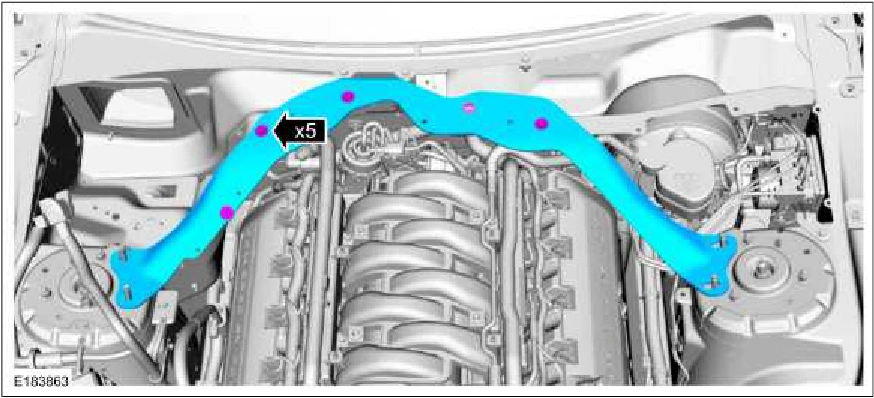

Valve Cover RH — original illustration 2, reference 370Original colors & callouts · Select to enlarge

10. Install the following items:

1. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

2. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

11. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Install the engine appearance cover.

Source reference 370
