Blower Motor

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 07/10/2015

Base Part Number: 19846

Removal

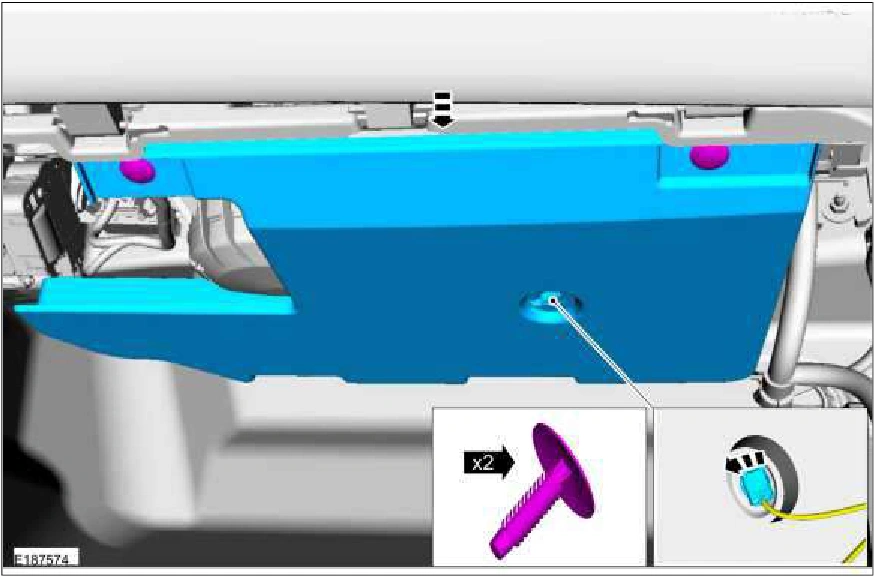

1. Remove the push pins and remove the RH insulation panel. Remove the insulation panel ambient light.

Blower Motor — original illustration 1, reference 3695Original colors & callouts · Select to enlarge

2. Disconnect the blower motor connector, the wiring harness retainers and position aside the harness. Remove the retainers and the blower motor.

Source reference 3695
