Cabin Air Filter

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Base Part Number: 19N619

Removal

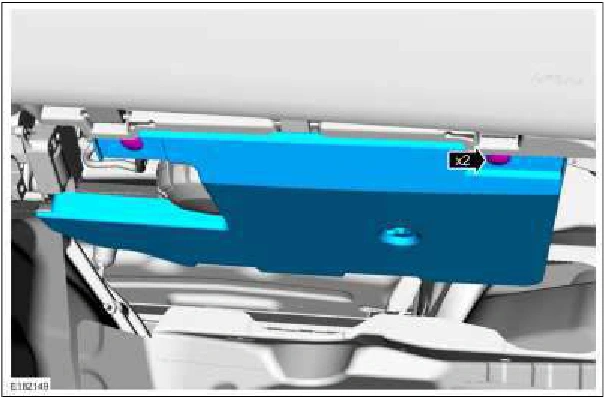

1. Remove the retainers and the RH lower instrument panel insulator.

Cabin Air Filter — original illustration 1, reference 3699Original colors & callouts · Select to enlarge

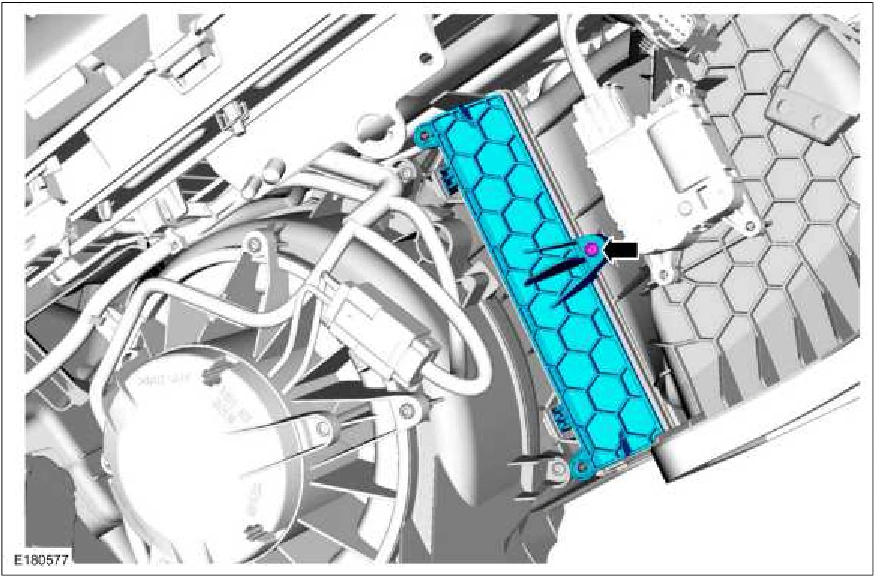

2. Remove the retainer and the cabin air filter cover.

Cabin Air Filter — original illustration 2, reference 3699Original colors & callouts · Select to enlarge

3. Remove the cabin air filter.

Source reference 3699
