412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Center Register Air Discharge Temperature Sensor

Removal

1. Remove the instrument panel cluster. Refer to: Instrument Panel Cluster (IPC) (413-01 Instrumentation, Message Center and Warning Chimes, Removal and Installation).

Step 2

1. Remove the center register air discharge temperature sensor.

2. Disconnect the center register air discharge temperature sensor connector.

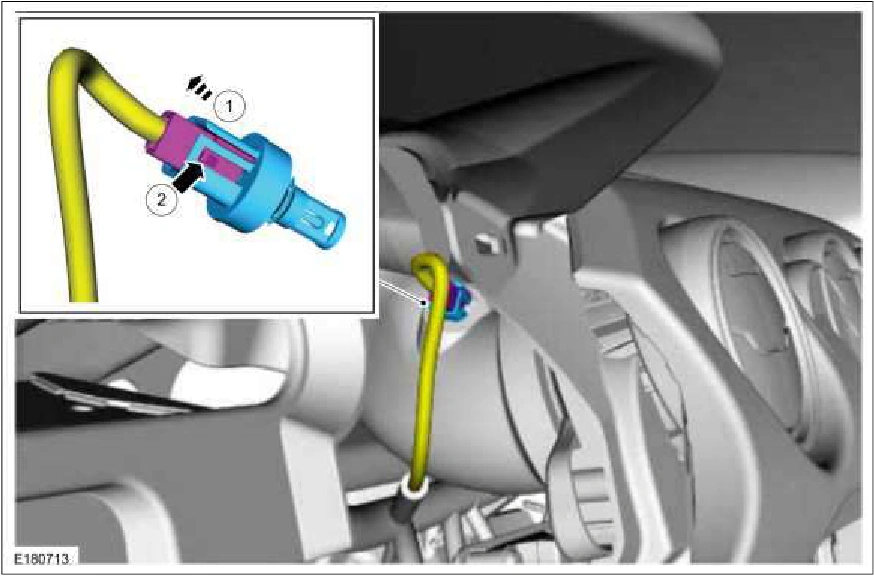

Center Register Air Discharge Temperature Sensor — original illustration 1, reference 3701Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
