Center Registers

412-00 Climate Control System - General Information 2016 Mustang

Removal and Installation Procedure revision date: 01/14/2015

Base Part Number: S018B08

Removal

NOTE: Vehicle with center gauges shown, without center gauges similar.

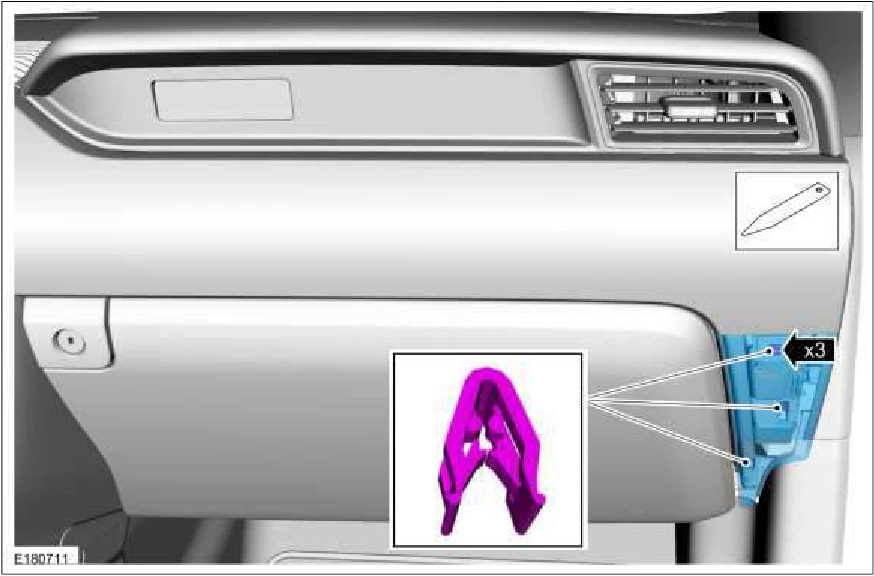

1. Remove the instrument panel side trim panel.

Center Registers — original illustration 1, reference 3703Original colors & callouts · Select to enlarge

2. Remove the instrument panel center upper trim panel and disconnect the electrical connector.

Source reference 3703
