Climate Control Housing - 3.7L Duratec (227kW/301PS)

412-00 Climate Control System - General Information

2016 MustangReference 3,713 / 6,619HTML edition

← Chapter contents Procedure contents

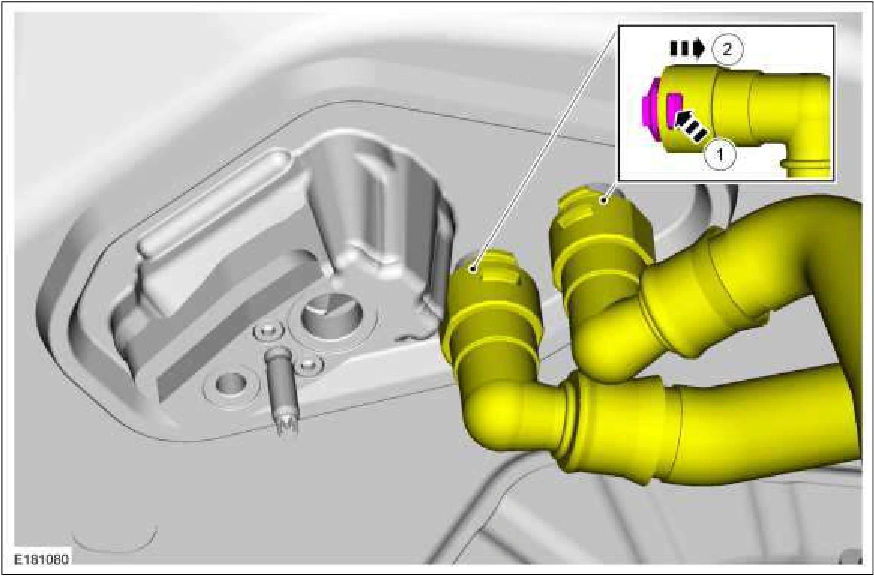

Climate Control Housing - 3.7L Duratec (227kW/301PS) — original illustration 1, reference 3713Original colors & callouts · Select to enlarge

6. Remove the bolt and washer. Torque : 62 lb.in (7 Nm)

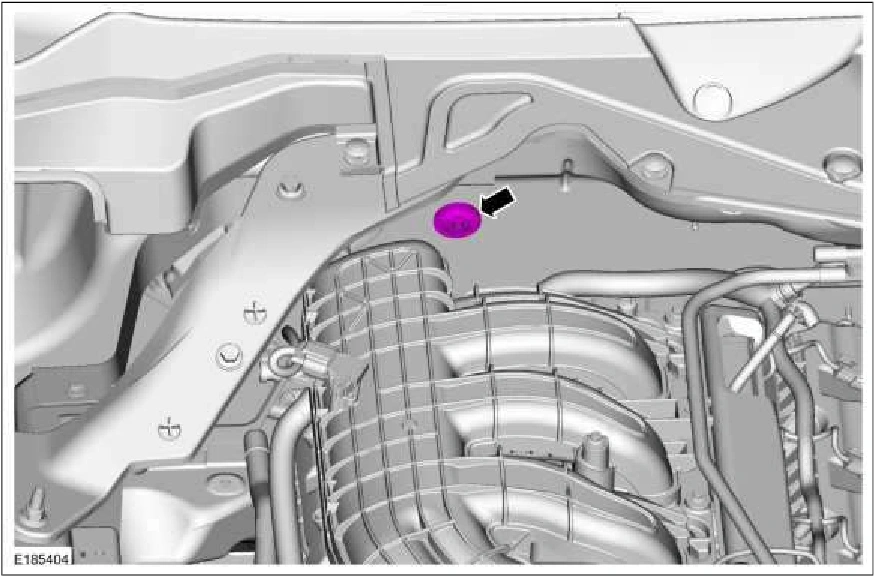

Climate Control Housing - 3.7L Duratec (227kW/301PS) — original illustration 2, reference 3713Original colors & callouts · Select to enlarge

7. Remove the bolt and washer. Torque : 62 lb.in (7 Nm)
